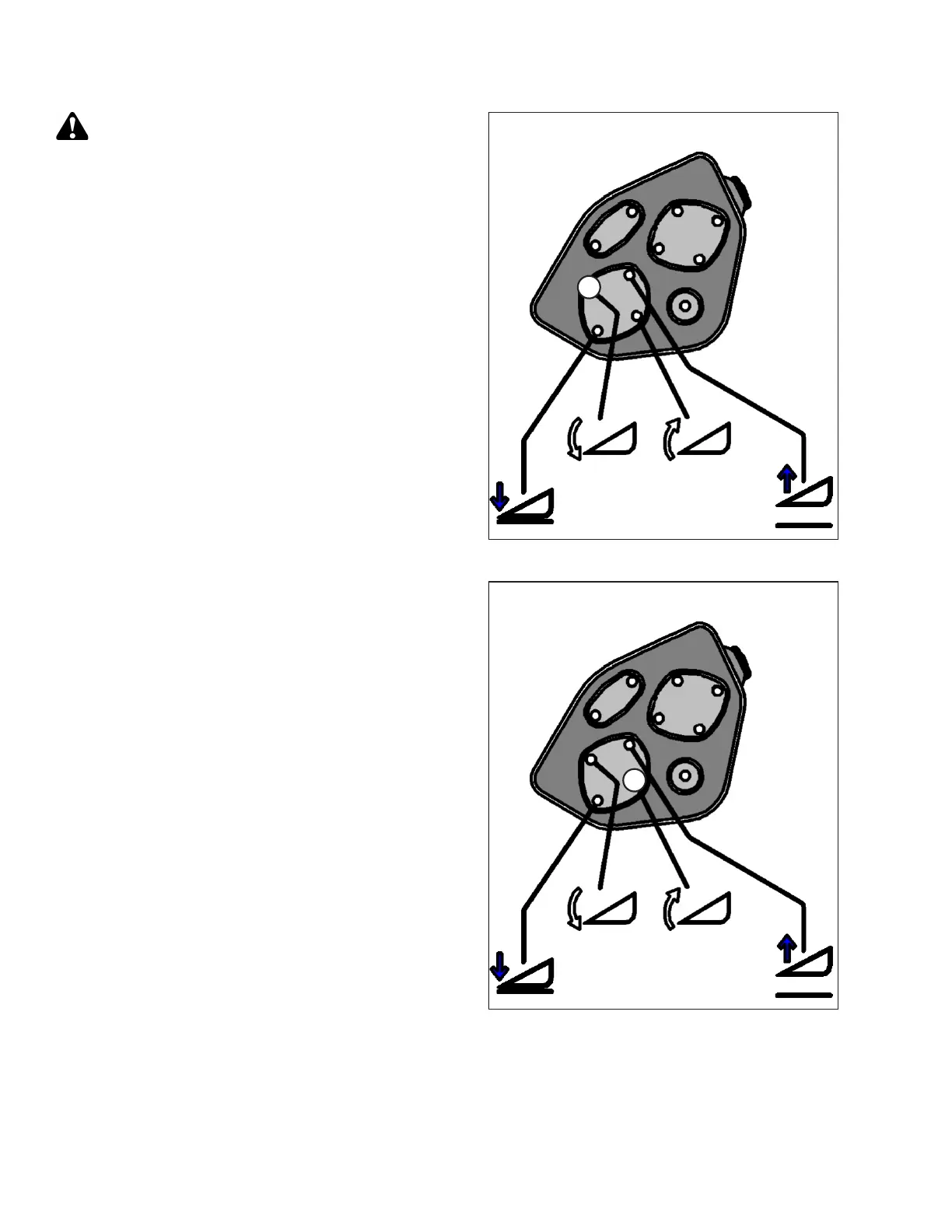

Figure 3.154: Header Tilt Controls on GSL
CAUTION
Check to be sure all bystanders have cleared the area.
6. Press and hold the HEADER TILT EXTEND button (A)
on the ground speed lever (GSL).
• CALIBRATING TILT is displayed on the upper line.
• EXTEND TILT HOLD is displayed on the lower line.
NOTE:
The word HOLD will flash during calibration. HEADER
TILT DONE will display on the lower line once
calibration is complete.
7. Release the HEADER TILT EXTEND button (A).
• HEADER TILT SENSOR CAL is displayed on
upper line.
• PRESS RETRACT TILT is displayed on the
lower line.
1023732
A
Figure 3.155: Header Tilt Controls on GSL
8. Press and hold HEADER TILT RETRACT button (A)
on GSL.
• CALIBRATING TILT is displayed on the upper line.
• RETRACT TILT HOLD is displayed on the
lower line.
NOTE:
The word HOLD will flash during calibration. HEADER
TILT COMPLETE will display on the lower line once
calibration is complete.
9. Release HEADER TILT RETRACT button (A).
• TO CALIBRATE SELECT is displayed on the
upper line.
• HEADER TILT is displayed on the lower line.
10. Press right arrow to select next header sensor
calibration or STOP & EXIT. Press SELECT.
Refer to Calibrating the Header Height Sensor, page
125 or Calibrating the Header Float Sensors, page 129.
11. Press PROGRAM to exit programming mode.
