MacDon M205 - Page 390

214603 370 Revision A
1000832
A
C
B
D

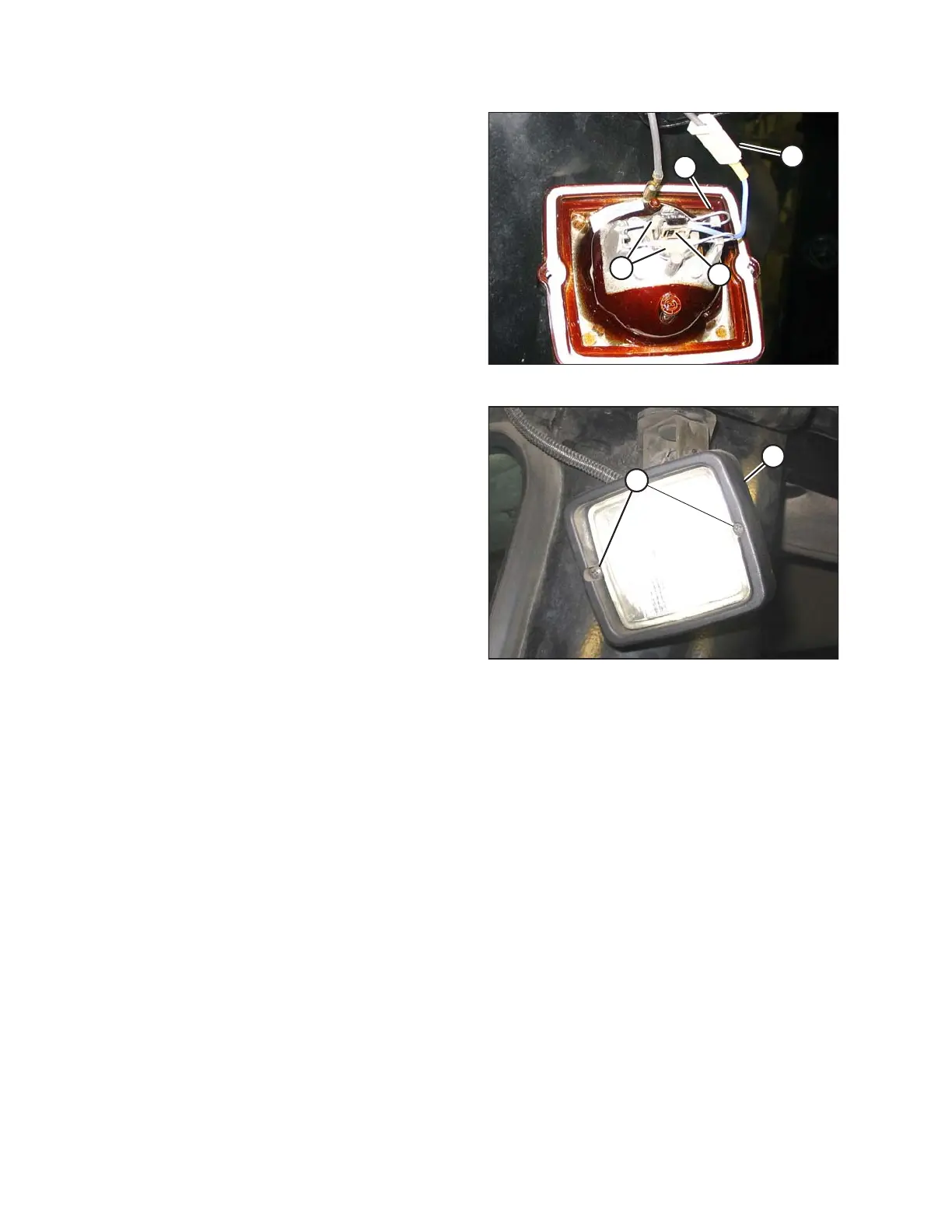

Figure 5.154: Rear Flood Light Assembly
4. Pinch the wire retainer (A) and lift away from hooks.
5. Remove bulb (B) from body and pull wire from
connector (D).
6. Match slots on new bulb (B) with lugs (C) in optical unit
and insert bulb into unit.
7. Secure bulb with wire retainer (A).
8. Push wire into connector (D).
1000831
A
B
Figure 5.155: Rear Flood Light
9. Position light into light receptacle, ensuring top is up.
10. Secure with bezel (B) and screws (A).
MAINTENANCE AND SERVICING
