MacDon M205 - Page 388

214603 368 Revision A
1006324
C
A
B

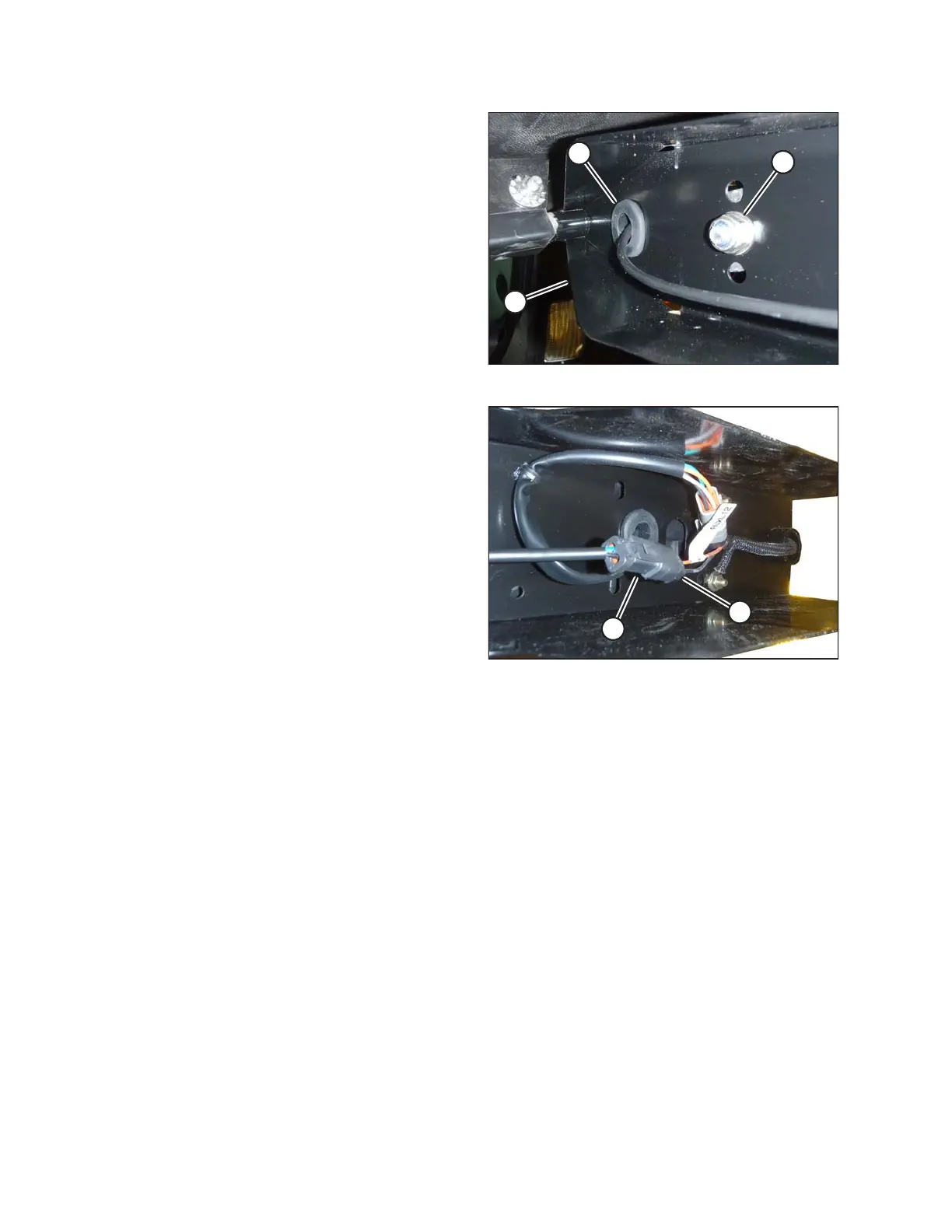

Figure 5.150: HID Light Assembly
10. Locate light in center hole in light support (B) and
secure with hardware (C) provided with light assembly.
11. Adjust light assembly to desired position and tighten
nut (C).
12. Route lamp harness through grommet (A) and slot in
light support (B).
13. Reinstall grommet (A) in light support (B).
1006323
A
B
Figure 5.151: HID Auxiliary Light Harness
14. Connect lamp plug (A) to main harness connector (B).
MAINTENANCE AND SERVICING
