214603 364 Revision A

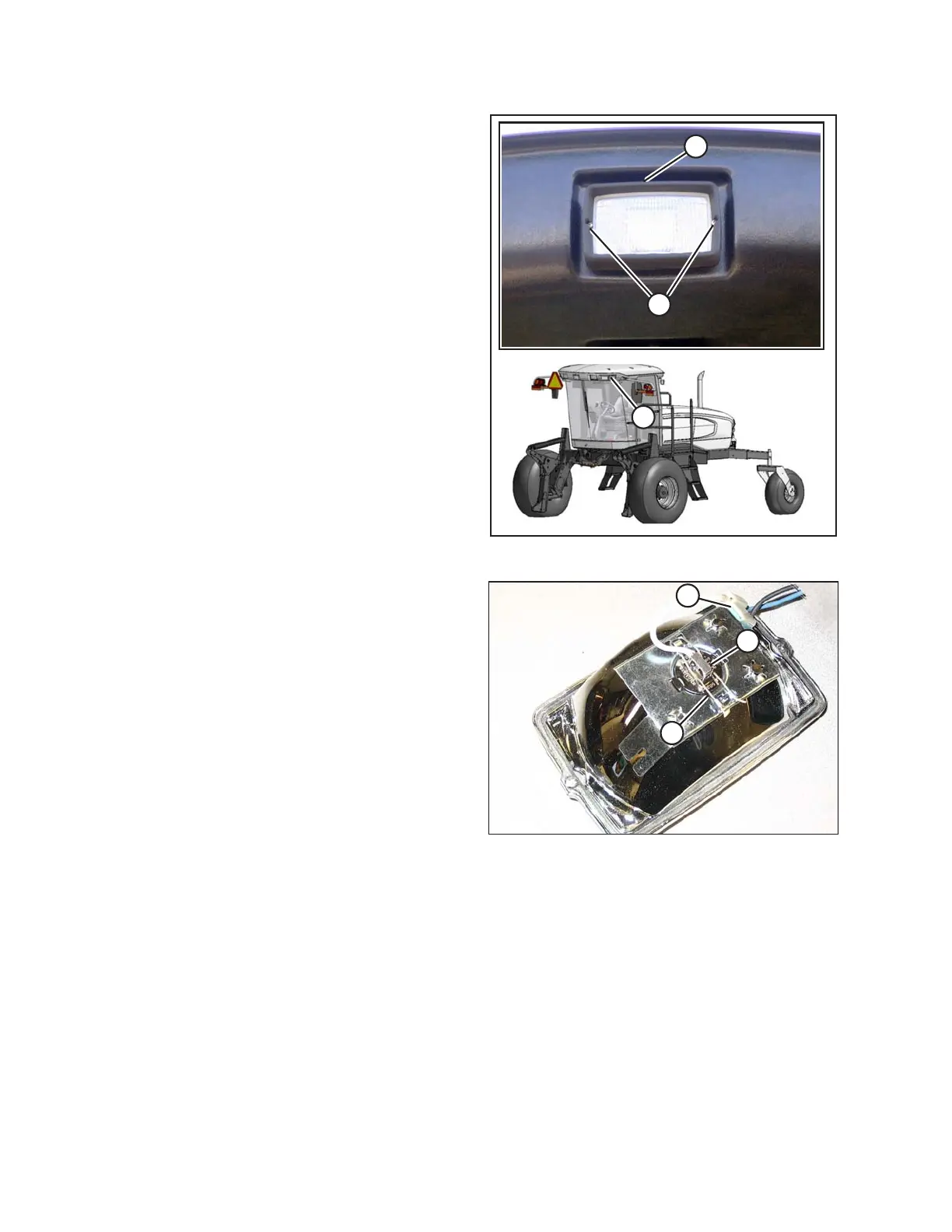

Figure 5.141: Forward Floodlights
2. Hold onto handholds (A) on the cab front corners and
stand on the header anti-slip strips when removing the
forward field lights.
3. Remove two screws (B) and remove light bezel (C).
4. Remove light from receptacle.
Figure 5.142: Floodlight Assembly
5. Pinch wire retainer (A) and lift away from hooks.
6. Remove bulb (B) from body and pull wire from
connector (C).
IMPORTANT:
Do NOT touch the glass of the halogen bulb as the oils
or other chemicals from your skin will cause the bulb to
fail prematurely.
