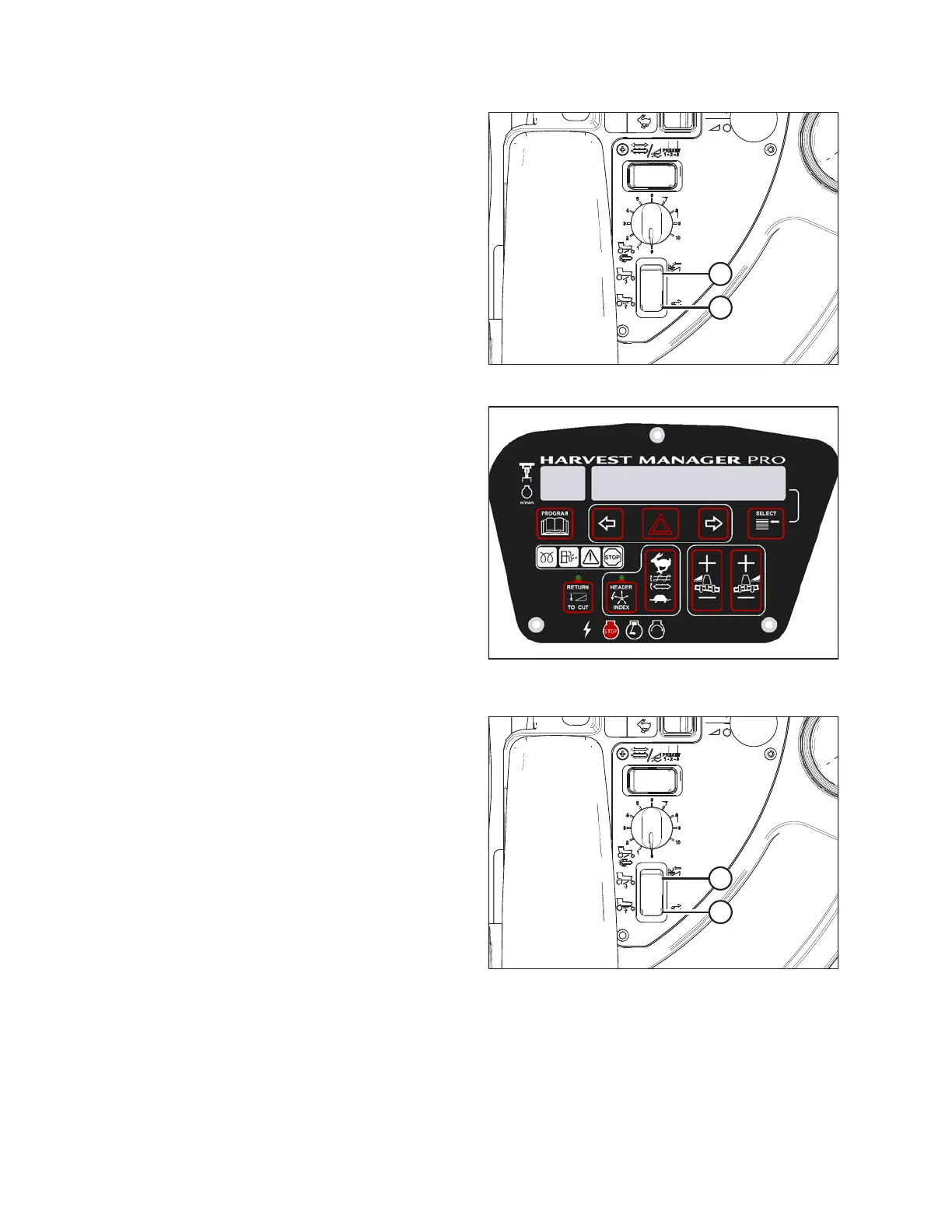

Figure 3.163: Swath Compressor Controls
6. Press and hold button (B) to raise the swath
compressor.
• CALIBRATING SWATH is displayed on the
upper line.
• FORM UP and flashing HOLD is displayed on the
lower line until the system has completed reading
signal with swath compressor fully raised.
• SWATH FORM UP DONE (with buzzer) is displayed
on the lower line when complete.
1025131
SWATH SENSOR CAL
PRESS SWATH DOWN
C###
X###
Figure 3.164: Swath Compressor Sensor
Calibration
• SWATH SENSOR CAL is displayed on the
upper line.
• PRESS SWATH DOWN is displayed on the
lower line.
1022623
A
B
Figure 3.165: Swath Compressor Controls
7. Press and hold button (A) to lower the swath
compressor.
• CALIBRATING SWATH is displayed on the
upper line.
• FORM DOWN and flashing HOLD is displayed on
the lower line.
• SWATH FORM COMPLETE flashes for 2 seconds
on the lower line (with buzzer) when the calibration
is complete.
8. Press PROGRAM to exit programming mode.
