214603 219 Revision A

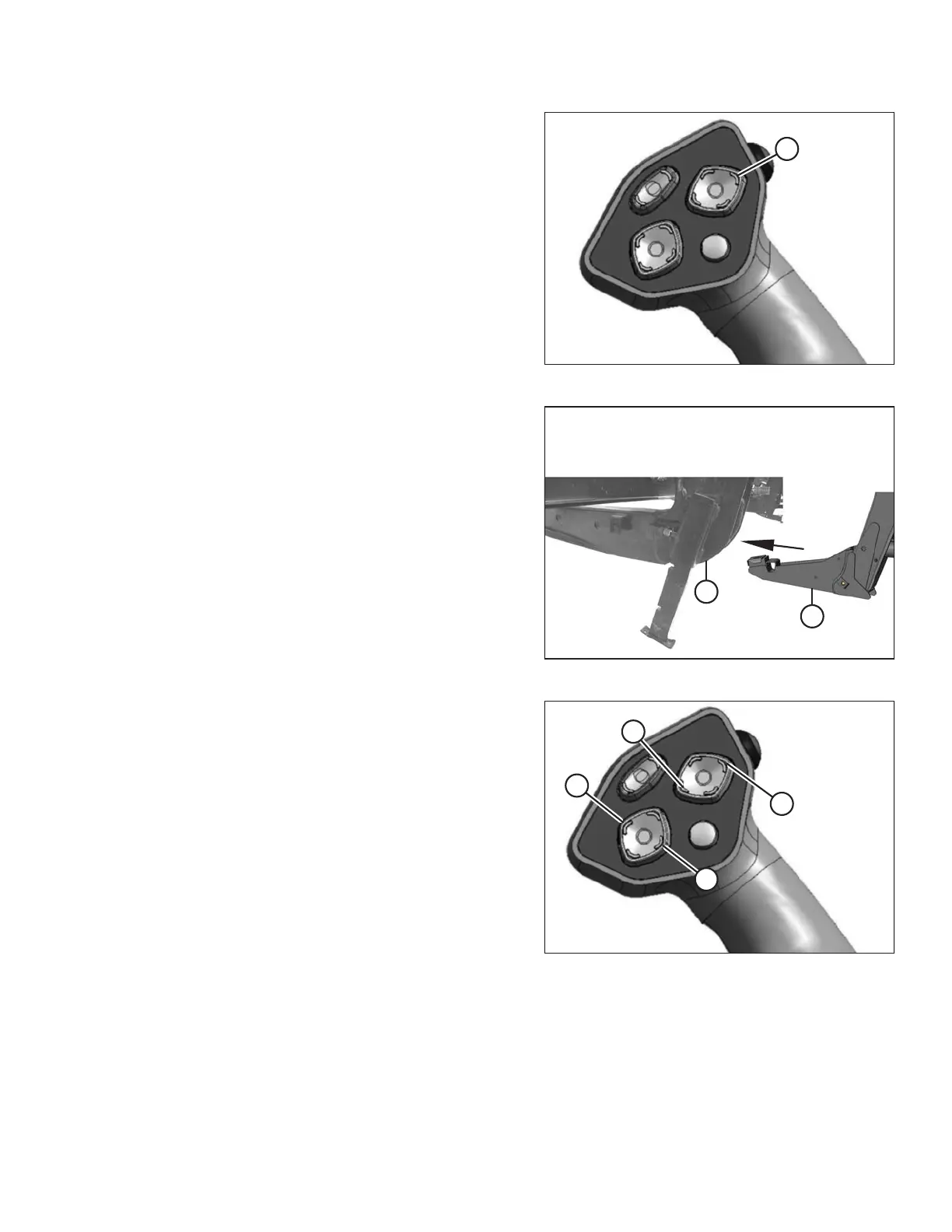

Figure 4.106: Ground Speed Lever
3. Activate the REEL UP switch (A) on the GSL to raise
the center-link until the hook is above the attachment
pin on the header.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
Figure 4.107: Header Leg and Boot
4. Drive the windrower slowly forward until the boots (A)
enter the header legs (B). Continue driving slowly
forward until lift linkages contact the support plates in
the header legs and the header nudges forward.
5. Ensure the lift linkages are properly engaged in the
header legs and are contacting the support plates.
Figure 4.108: Ground Speed Lever
6. Use the following GSL functions to position the
center-link hook above the header attachment pin:
• REEL UP (A) to raise the center-link
• REEL DOWN (B) to lower the center-link
• HEADER TILT UP (C) to retract the center-link
• HEADER TILT DOWN (D) to extend the center-link
OPERATION
