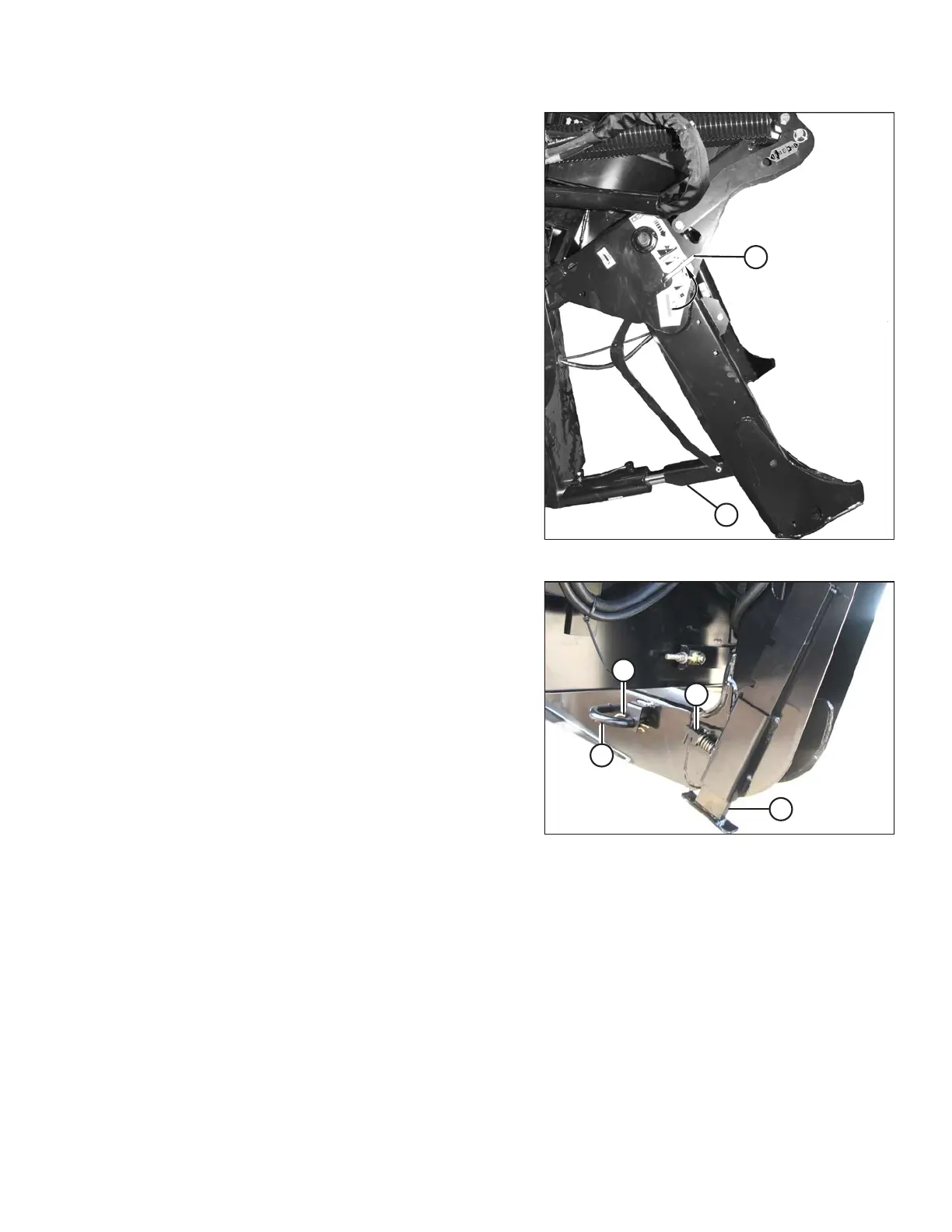

Figure 4.111: Safety Prop
12. Engage the safety props on both lift cylinders as
follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate towards the header to
release and lower safety prop (B) onto the lift
cylinder.
c. Repeat for opposite lift cylinder.
Figure 4.112: Header Leg
13. Install pin (B) through the header leg (engaging
U-bracket in lift linkage) on both sides and secure with
hairpin (A).
14. Raise header stand (D) to storage position by pulling
spring pin (C) and lifting stand into uppermost position.
Release spring pin.
