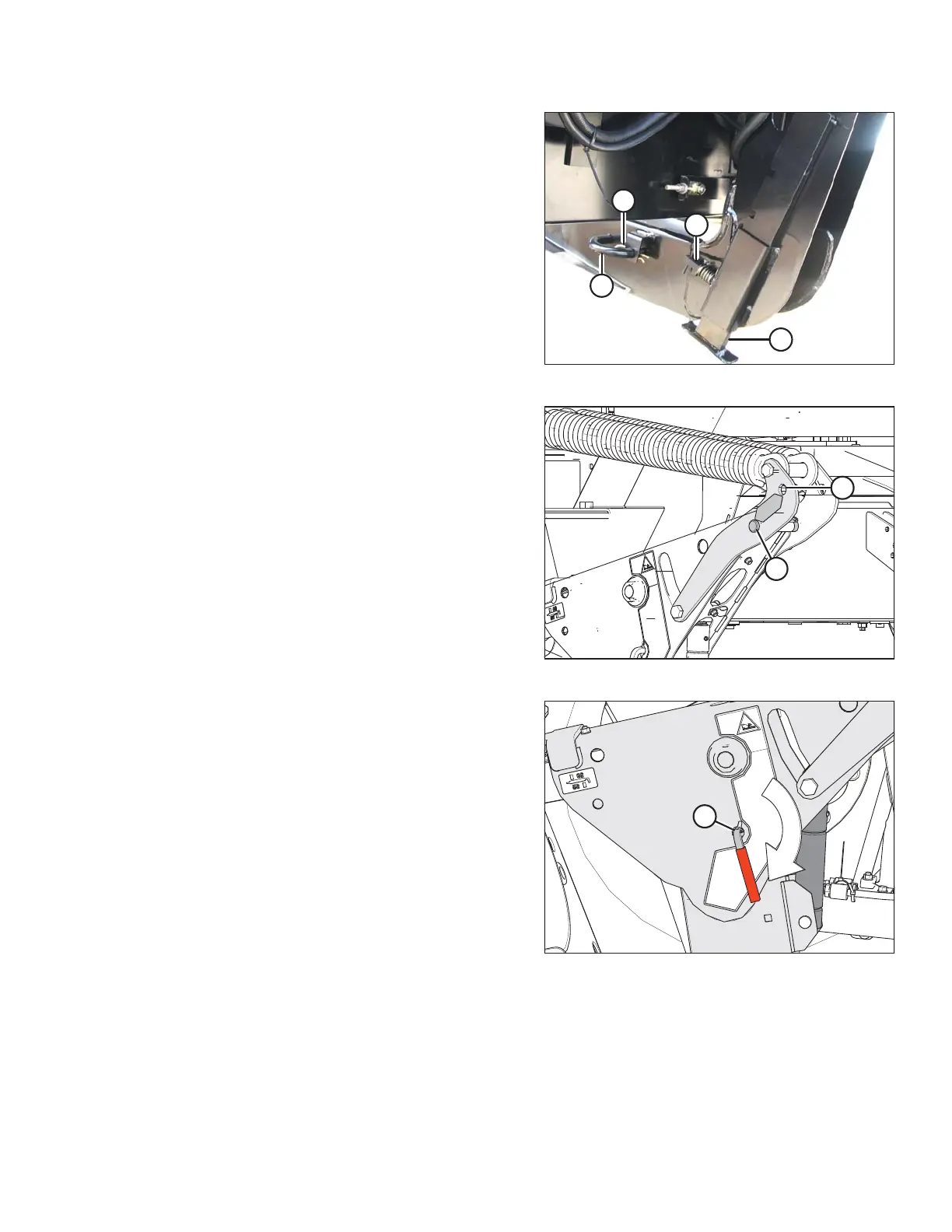

Figure 4.126: Header Leg
14. Install pin (B) through the header leg (engaging
U-bracket in lift linkage) on both sides and secure with
hairpin (A).
15. Raise header stand (D) to storage position by pulling
spring pin (C) and lifting stand into uppermost position.
Release spring pin.
1008712
A
B
Figure 4.127: Header Float Linkage
16. Remove the clevis pin from storage position (B) in
linkage and insert into hole (A) to engage the float
springs. Secure with hairpin.
1014507
A
Figure 4.128: Safety Prop Lever
17. Disengage the safety prop by turning lever (A)
downwards until lever locks into vertical position.
18. Repeat for opposite safety prop.
