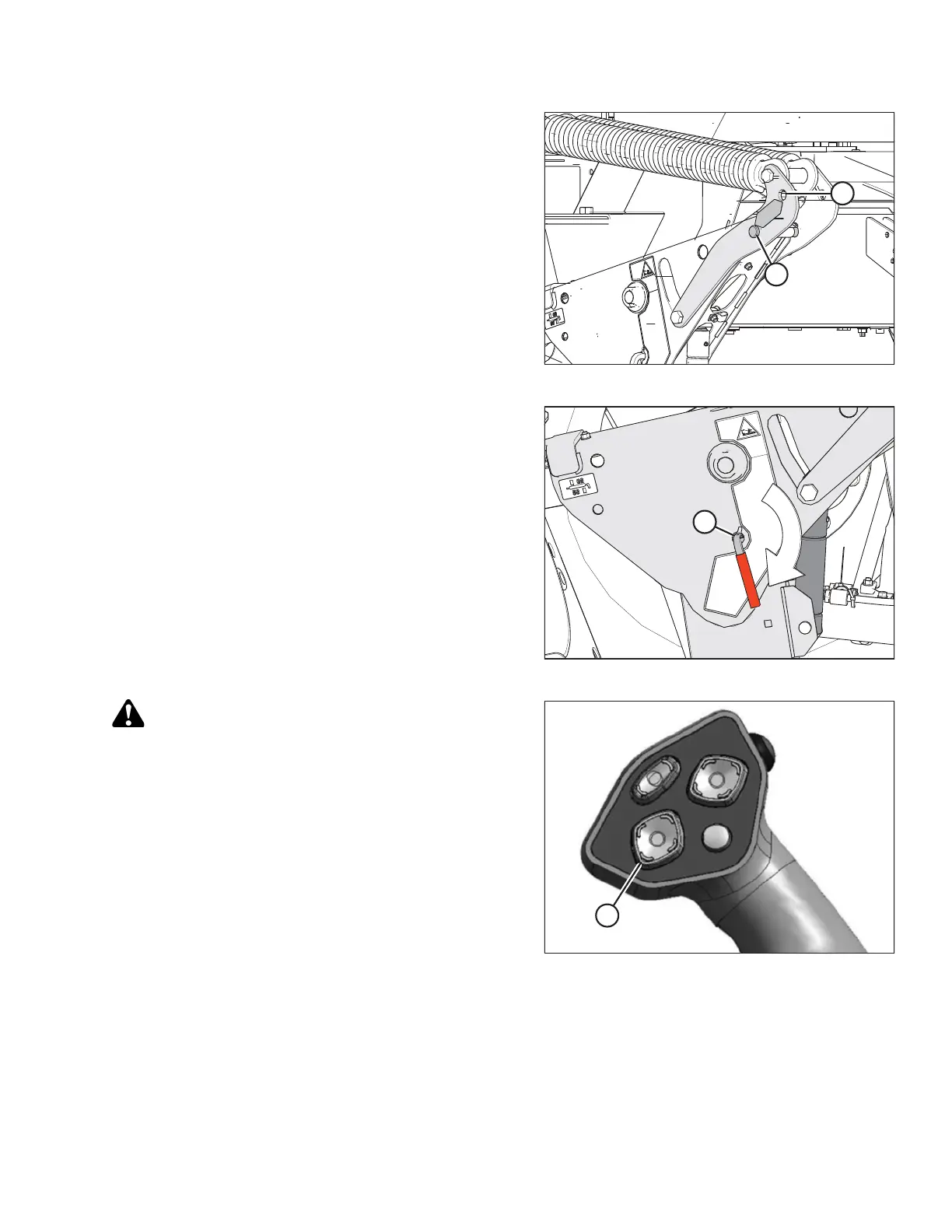

Figure 4.192: Header Float Linkage
14. Remove the clevis pin from storage position (B) in
linkage and insert into hole (A) to engage the float
springs. Secure with hairpin.
Figure 4.193: Safety Prop Lever
15. Disengage the safety prop by turning lever (A)
downwards until lever locks into vertical position.
16. Repeat for opposite safety prop.
Figure 4.194: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
17. Start the engine and press HEADER DOWN switch (A)
on the GSL to fully lower the header.
18. Stop engine and remove key from ignition.
OPERATION
