MacDon M205 - Operating with an A Series Header

214603 255 Revision A
1008925
A

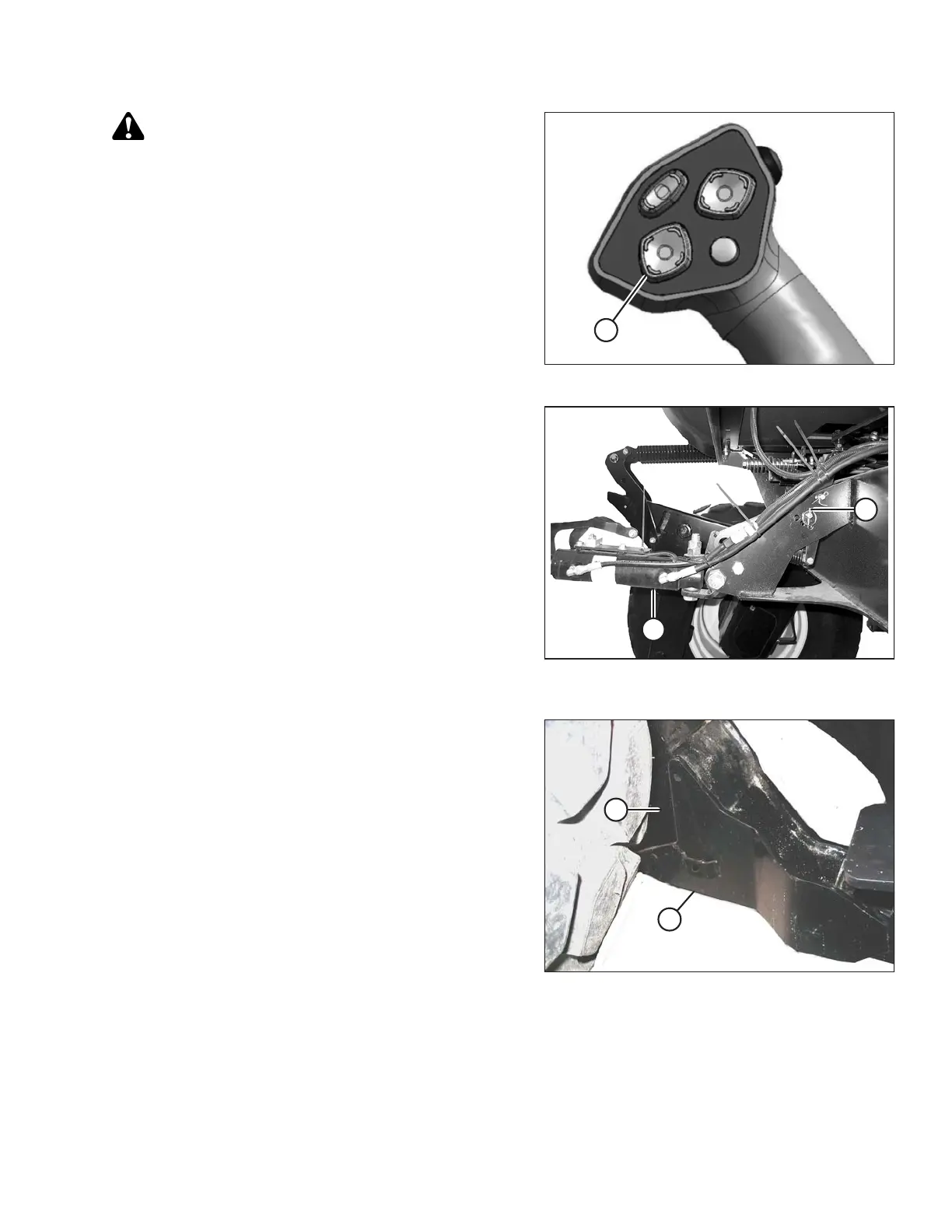

Figure 4.198: Ground Speed Lever
CAUTION
Check to be sure all bystanders have cleared the area.
3. Start the engine, and press HEADER DOWN button (A)
on the ground speed lever (GSL) to fully retract header
lift cylinders.
1000757
A
B
Figure 4.199: Hydraulic Center-Link without
Self-Alignment Kit
4. Remove pin (A) pin in frame linkage and raise center-
link (B) until hook is above the attachment pin on
header. Replace pin (A) to hold center-link in place.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
1000780
B
A
Figure 4.200: Header Support
5. Drive the windrower slowly forward until the windrower
feet (A) enter the header supports (B). Continue driving
slowly forward until the feet engage the supports and
the header nudges forward.
OPERATION
