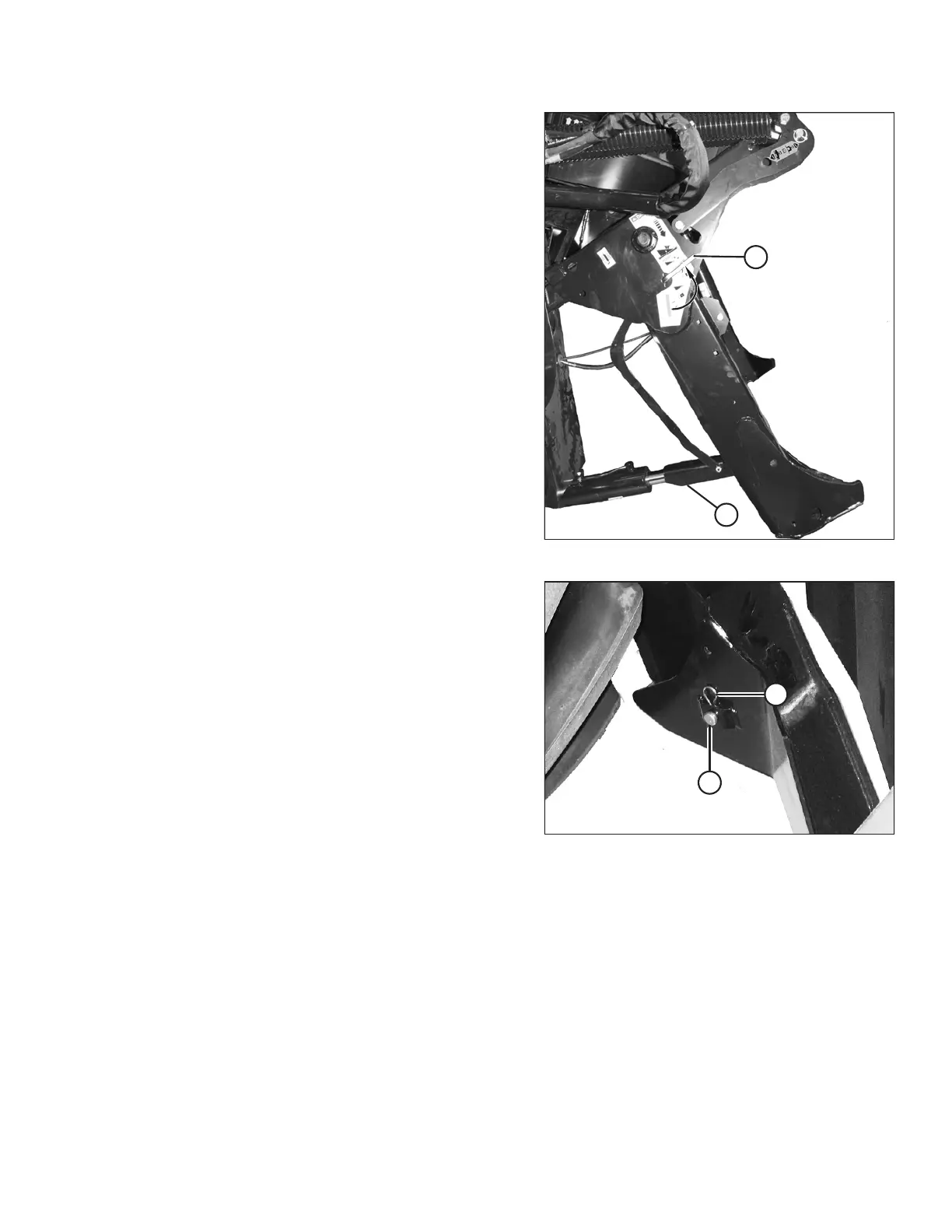

Figure 4.204: Safety Prop
13. Engage the safety props on both lift cylinders as
follows:
a. Stop engine and remove key from ignition.
b. Pull lever (A) and rotate towards the header to
release and lower safety prop (B) onto the lift
cylinder.
c. Repeat for opposite lift cylinder.
Figure 4.205: Header Support
14. Install clevis pin (A) through the support and windrower
lift member, and secure with hairpin (B). Repeat for
opposite side.
IMPORTANT:
Ensure clevis pin (A) is fully inserted and hairpin is
installed behind bracket.
