214603 312 Revision A

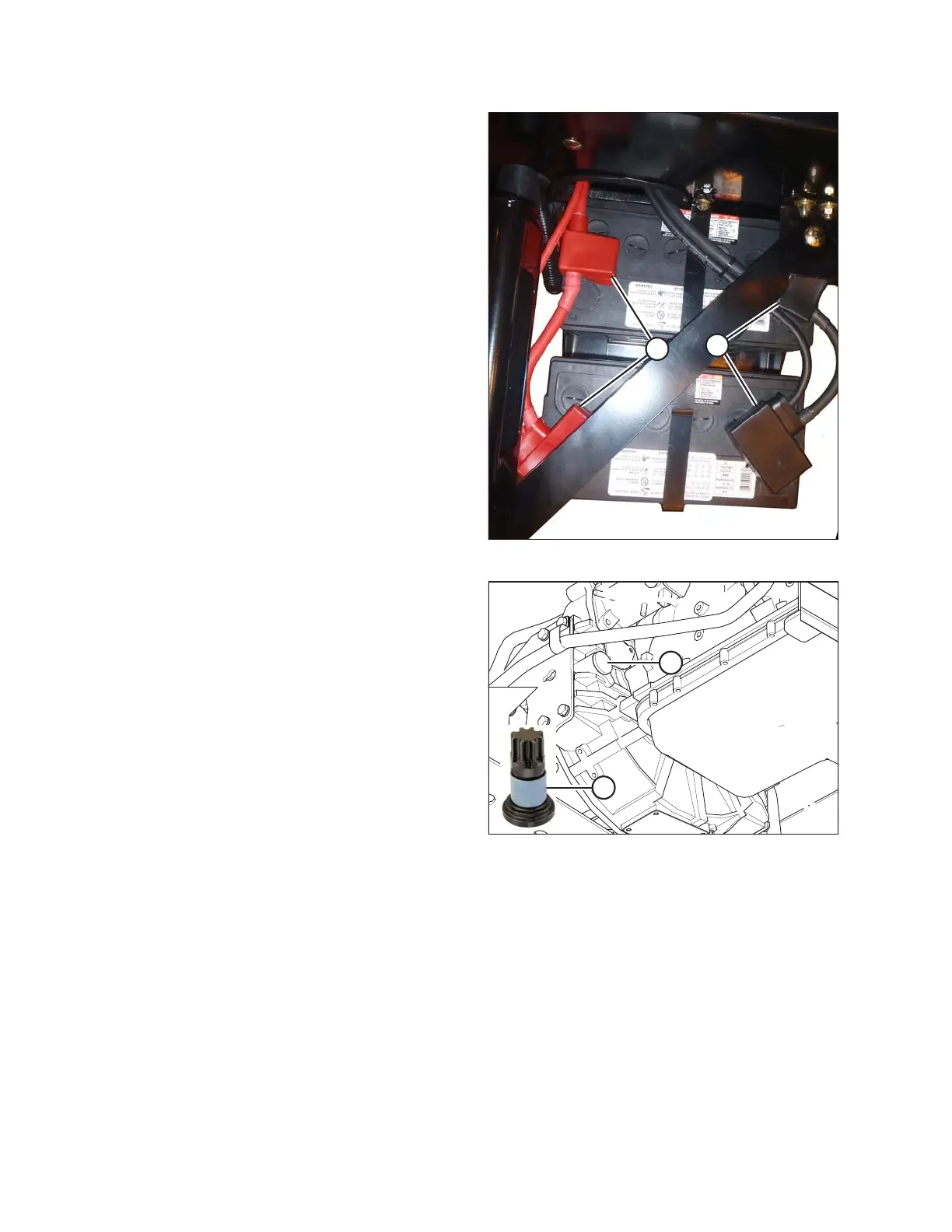

Figure 5.43: Battery Terminal Location
4. Remove positive (red) cables (A) from battery posts
first, then remove negative (black) cables (B) from both
battery posts.
Figure 5.44: Access Hole Location for
Barring Tool
5. Clean the area around the plastic cap on access
hole (A). Remove the cap.
IMPORTANT:
Ensure nothing falls into gearbox oil reservoir.
6. Insert barring tool (B) into the flywheel housing until it
engages the ring gear.
7. Attach a 1/2 in. square drive ratchet or breaker bar
and turn.
8. Remove barring tool (B), and then clean oil from around
access hole (A).
9. Clean plastic cap and reinstall in access hole (A) with
silicone sealant.
MAINTENANCE AND SERVICING
