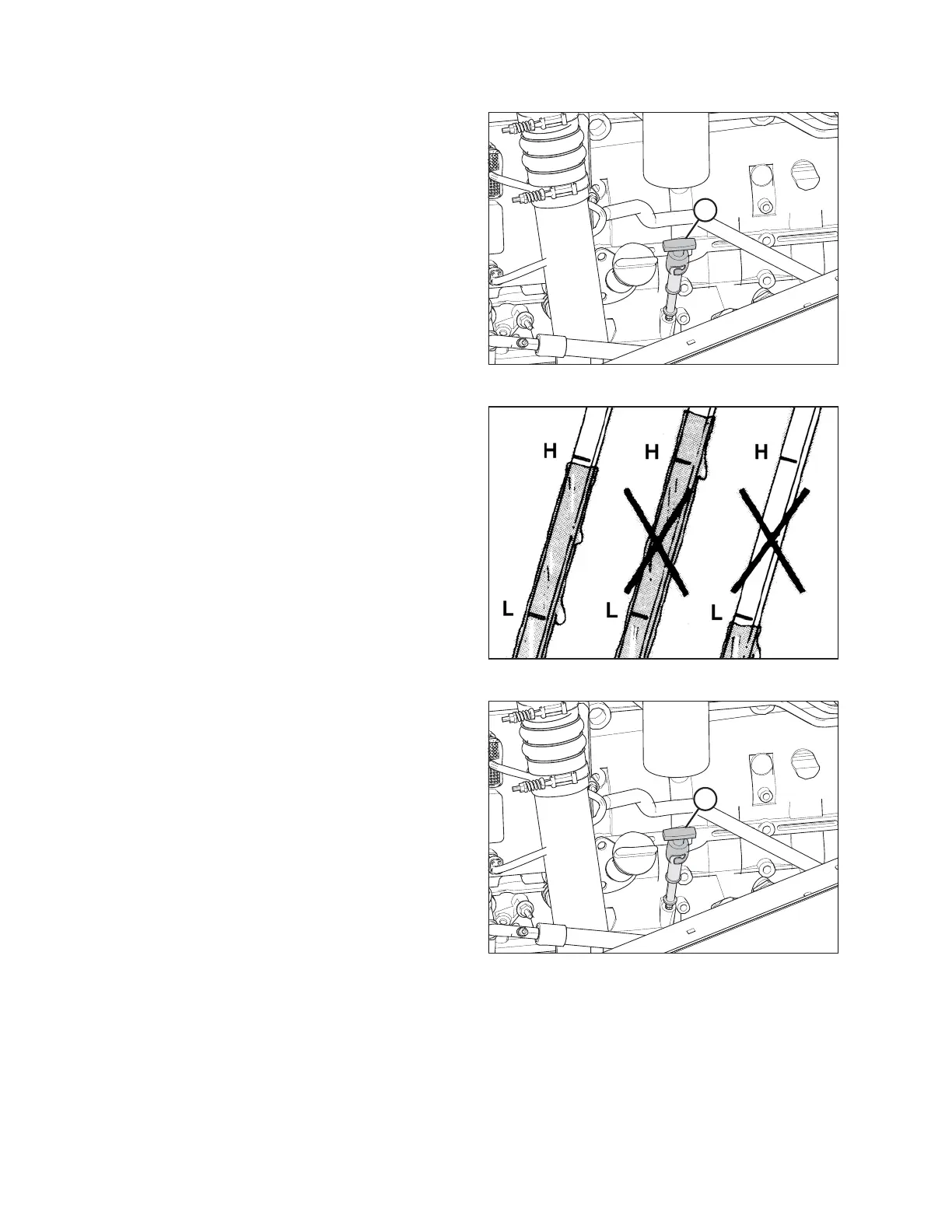

Figure 5.46: Engine Oil Dipstick
4. Remove dipstick (A) by turning it counterclockwise to
unlock.
5. Wipe the dipstick clean and reinsert it into the engine.
6. Remove the dipstick again and check the oil level.
Figure 5.47: Engine Oil Level
7. Add oil if level is below low (L) mark. Refer to Adding
Engine Oil, page 316.
IMPORTANT:
Oil level should be maintained between low (L) and
high (H) mark on the dipstick.
Figure 5.48: Engine Oil Dipstick
8. Replace dipstick (A) and turn it clockwise to lock.
9. Close the hood. Refer to 5.2.2 Closing Hood (Lower
Position), page 285.
