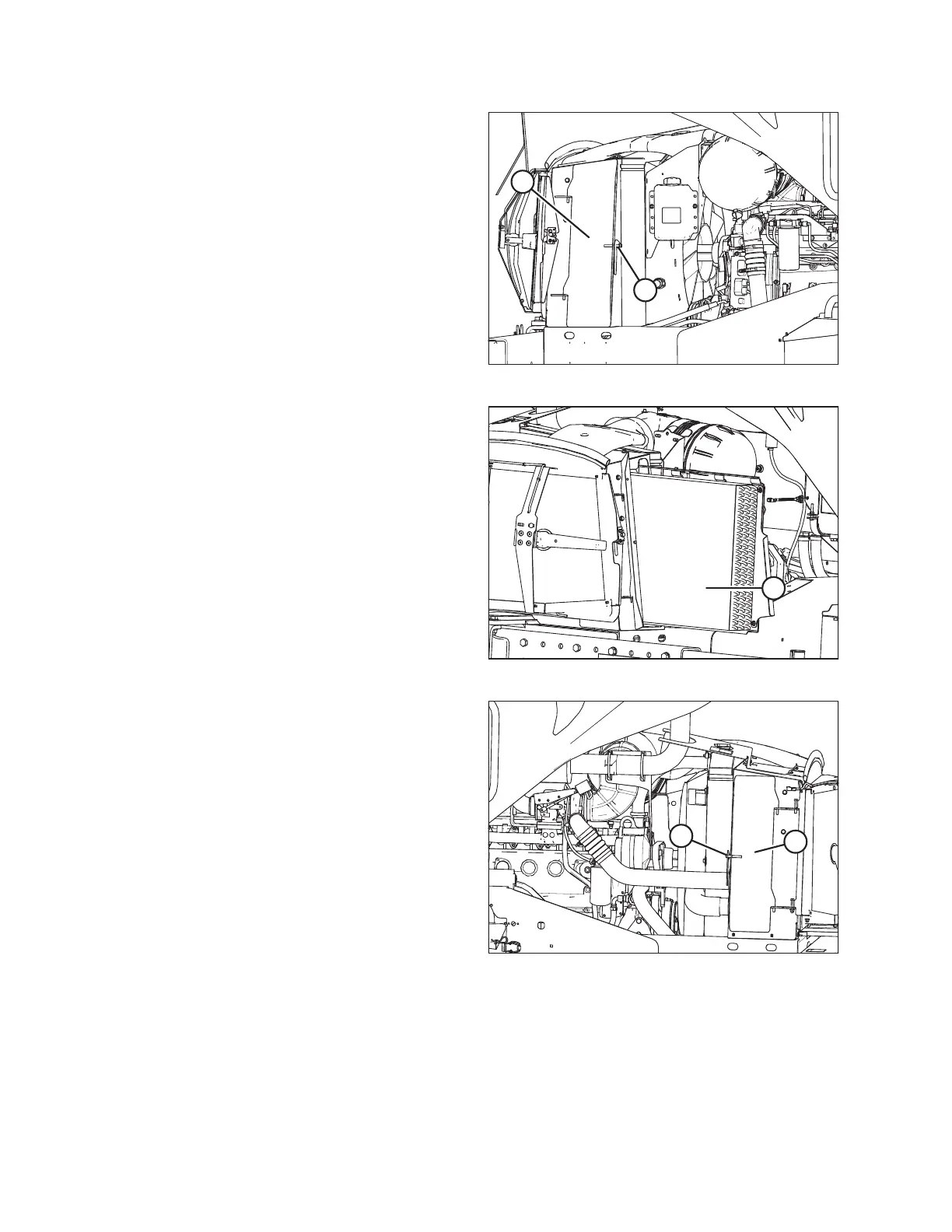

Figure 5.96: Right Cooler Access Door
2. Lift latch (A) and open right access door (B).
1000275
A
Figure 5.97: A/C Condenser Assembly
3. Slide out the oil cooler / air conditioning (A/C)
condenser assembly (A).
1000176
A
B
Figure 5.98: Left Cooler Access Door
4. Lift latch (A) and open left access door (B).
