MacDon M205 - Page 375

214603 355 Revision A
1006037
A

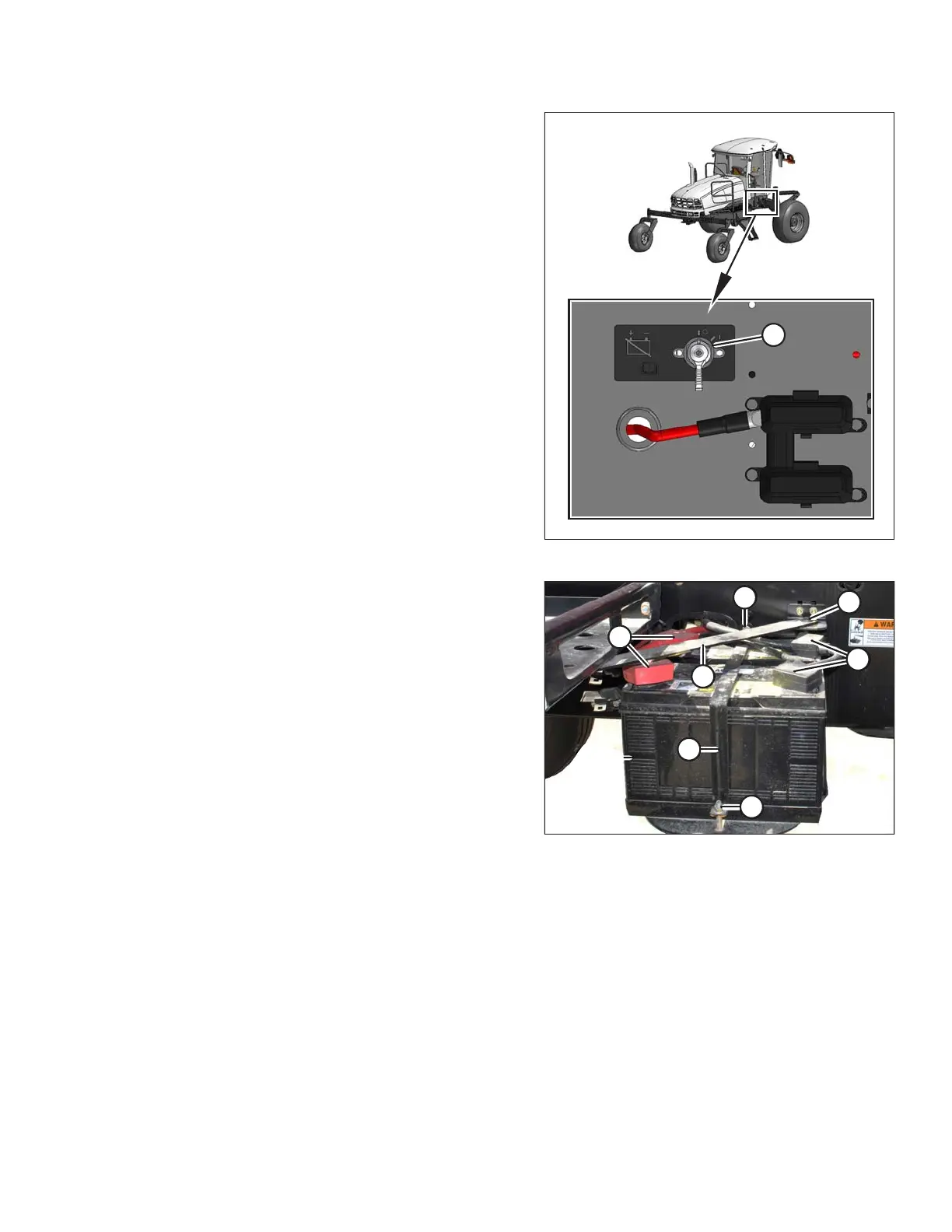

Figure 5.121: Battery Main Disconnect Switch
3. Ensure the battery main disconnect switch (A) is turned
to the POWER OFF position (the battery main
disconnect switch is located on the right frame rail
beside the batteries).
1023971
A
B
C
D
E
E
F
Figure 5.122: Batteries
4. Remove bolt (A) that secures the platform arm to the
platform. Swing arm (B) out of the way.
5. Remove the black plastic cover from the negative cable
clamps (D). Loosen clamps and remove cable from
batteries.
6. Remove the red plastic cover from positive cable
clamps (C). Loosen the clamps and remove cable from
batteries.
7. Remove bolts (E) securing strap (F) to frame, and
remove strap.
MAINTENANCE AND SERVICING
