MacDon M205 - Page 56

214603 36 Revision A

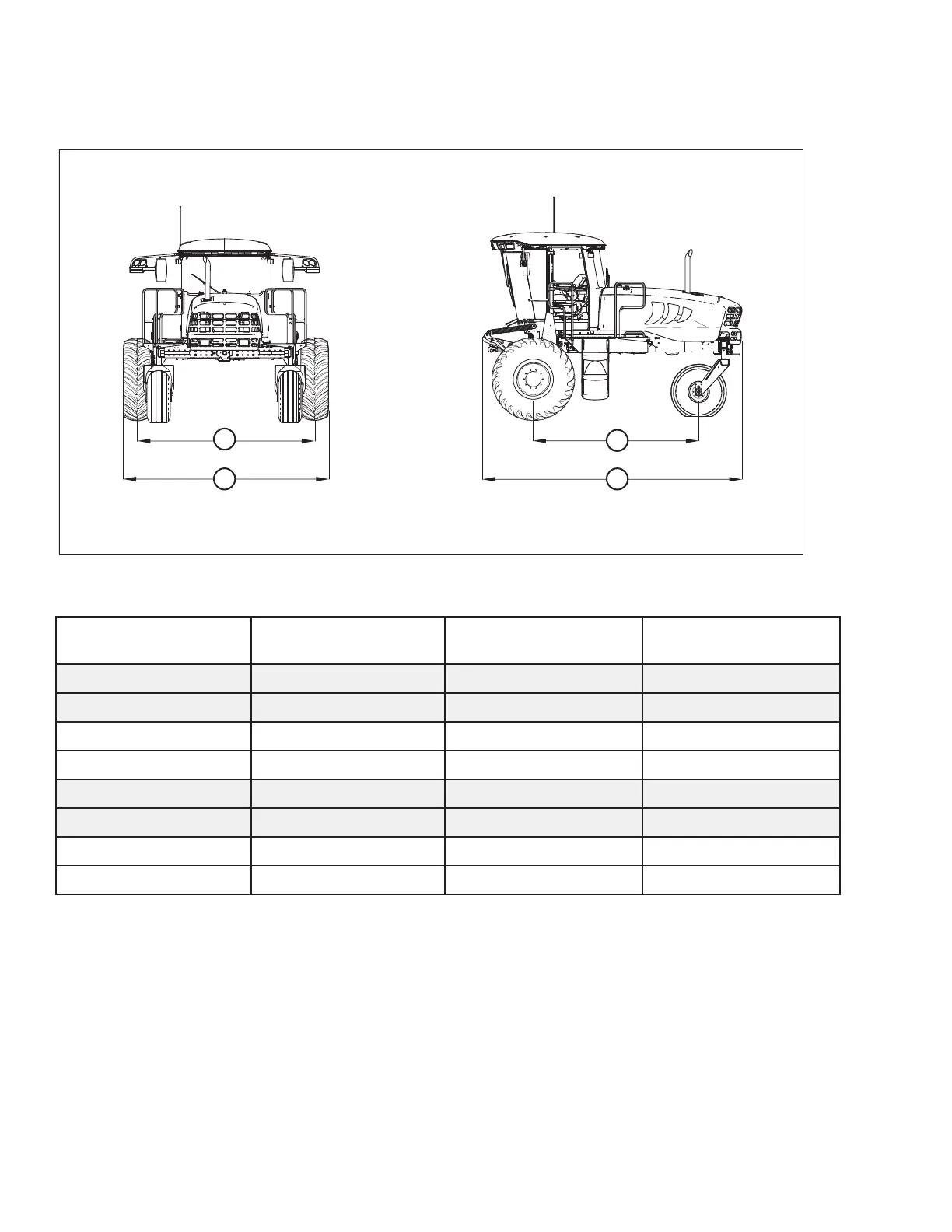

Figure 2.3: Windrower Dimensions – Engine-Forward
1008783
D
E
K
L
D - Caster Tire Tread E - Caster Tire Casters K - 3064 mm (120-9/16 in.) L - 4747 mm (186-7/8 in.)
Table 2.2 Caster Tires
Tire Size
Wheel Position
Tread (D)
mm (in.)
Casters (E)
mm (in.)
7.5-16SL
Minimum
2448 (96-7/16) 3032 (118-15/16)
7.5-16SL
Maximum
3448 (135-11/16) 4032 (158-3/4)
10-16 formed caster
Minimum
2448 (96-7/16) 3032 (118-15/16)
10-16 formed caster
Maximum
3448 (135-11/16) 4032 (158-3/4)
10-16 forked caster
Minimum
2448 (96-7/16) 3014 (118-11/16)
10-16 forked caster
Maximum
3448 (135-11/16) 4014 (158)
16.5 x 16.1
Minimum
2448 (96-7/16) 3014 (118-11/16)
16.5 x 16.1
Maximum
3448 (135-11/16) 4014 (158)
PRODUCT OVERVIEW
