214603 65 Revision A

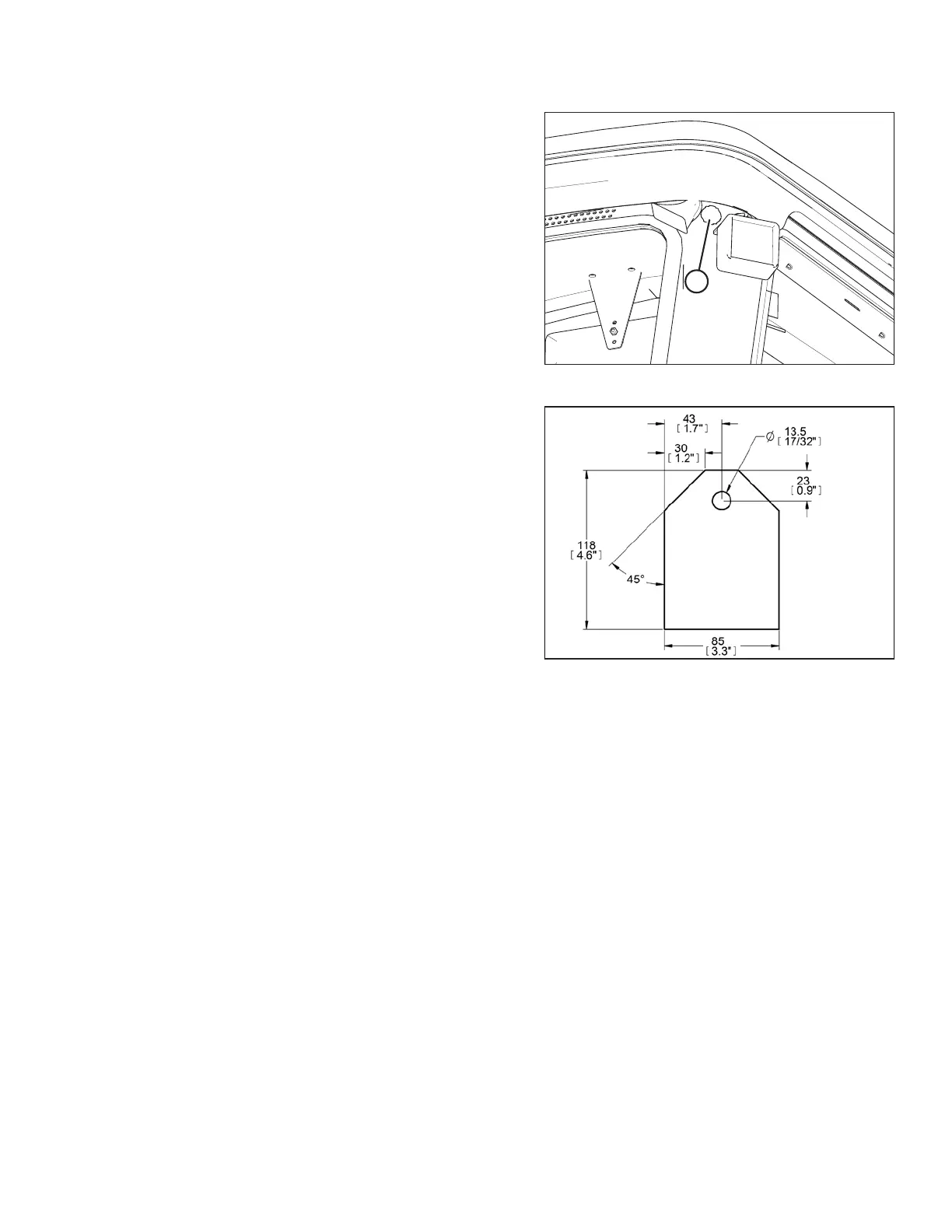

Figure 3.48: Knockout Location in Cab
The knockout (A) is located on the exterior right cab-forward
rear corner post of the cab, under the roof, between the
horn and the light.
Figure 3.49: Template for Antenna Mount
To make your own mount, refer to dimensions template.
Use 11 GA. or 3.0 mm steel sheet.
OPERATOR’S STATION
