left = single-ended
right = balanced
Run <Fixture Modeling Tool>
Runs the selected fixure deembedding tool.
This button is only active, if both
●
the test coupon measurement finished successfully or the test coupon data were
successfully loaded from file (see Chapter 6.13.5.2, "Measure Coupon",
on page 592)
●
the measurement of DUT + test fixture finished successfully (see Chapter 6.13.5.3,
"Measure DUT + Test Fixture", on page 593)
The resulting Touchstone files (S parameters of the lead-ins, the lead-outs, and the de-
embedded DUT) are written to C:\Users\Public\Documents\Rohde-Schwarz\Vna

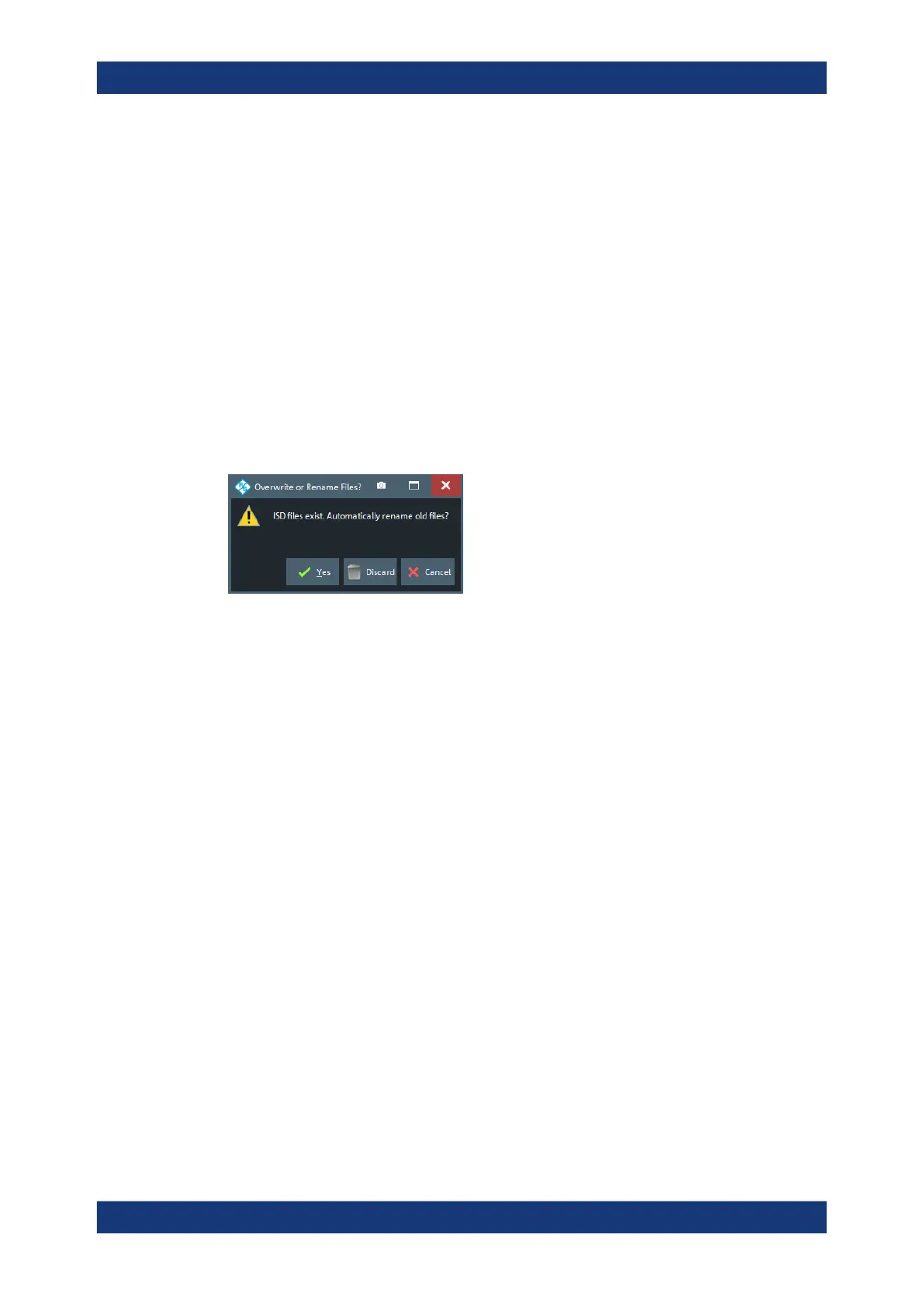

\Embedding. If result files with the same names already exist, you will be asked
whether you want to rename or overwrite them.
If running the deembedding tool causes errors, the <Deembedding Tool> Errors Dialog
provides additional information.
Note: For ISD first a batch task file Embeddingconfig_znb.abt is created and then
the tool is run in batch mode (see the ISD User Guide)
Remote command:
CALCulate:FMODel:ISD<Ph_pt>:RUN:RUN
CALCulate:FMODel:SFD<Ph_pt>:RUN:RUN
CALCulate:FMODel:EZD<Ph_pt>:RUN:RUN
Abort Run
During the Run <Fixture Modeling Tool> step, the user may abort the tool execution at
any time.
Remote command:
n.a.
Apply
Use these checkboxes to indicate the ports (physical for single-ended deembedding,
logical for balanced deembedding) to which the deembedding files (generated by Run
<Fixture Modeling Tool>) shall be assigned when the dialog is closed using Apply.
Note: For a "left" deembedding file the original port order is used, for a "right" de-
embedding files the swap gates (ports) function is used.
Remote command:
CALCulate:FMODel:ISD<Ph_pt>:RUN[:STATe]
CALCulate:FMODel:SFD<Ph_pt>:RUN[:STATe]
CALCulate:FMODel:EZD<Ph_pt>:RUN[:STATe]
