A3/11"X17" TRAY UNIT TK5000 (B331-11)
B234/B235/B236/D101/D102/D103 1-42 SM

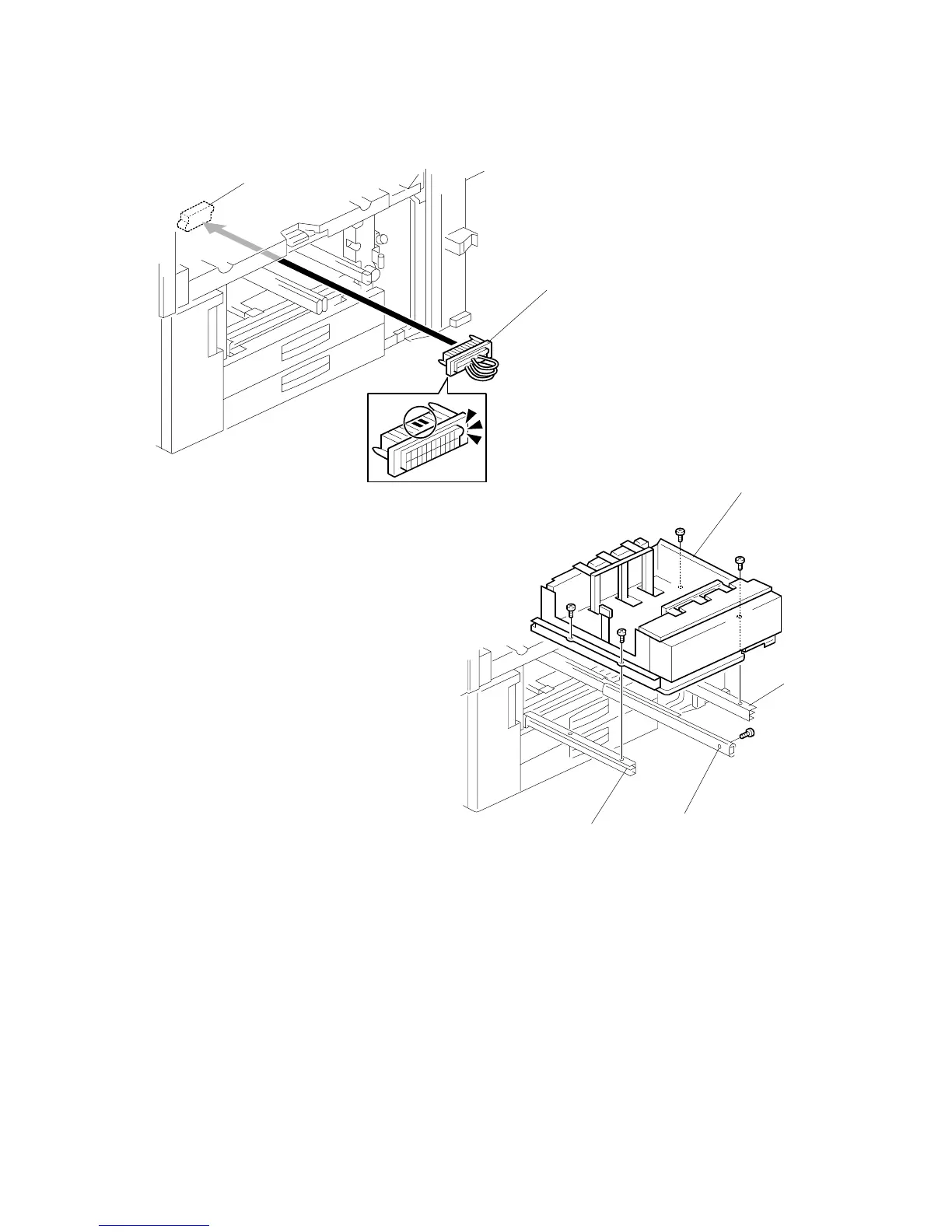

11. Insert the short connector [A] into the socket inside the machine [B].
NOTE: Hold the connector as shown in the illustration.
12. Using the screws removed in Steps 8 and 11, install the tray [C] on the right rail
[D], center rail [E], left rail [F].
NOTE: You must use the short, silver screws on the left and right rails. If you
use one of the longer screws, it will block the movement of the tray on
the rails.
B331I004.WMF
B331I003.WMF
[C]
[D]
[E]
[F]
[A]
[B]
