Installation
7. Remove the lower stay [A] ( x 4).
8. Remove the two screws that secure the ground plate [B].
9. Turn over the ground plate and use the screws to fasten it to the same holes as
shown ( x 2).
Important!
• If you are going to install the Multi Bypass Tray B833, it must be installed
before the LCT is docked to the mainframe. (1.7)

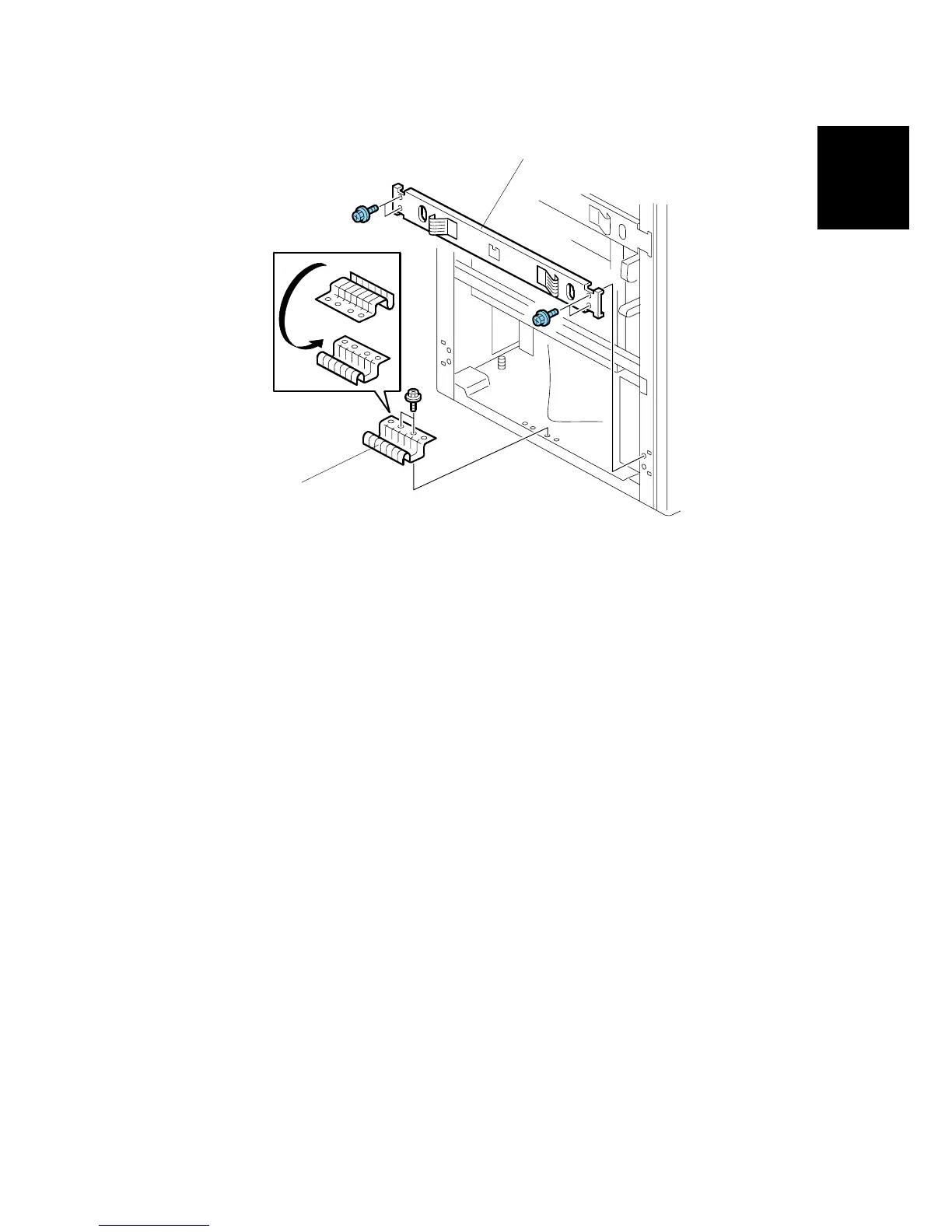

B834I106.WMF
[A]
[B]
