P/N 57150002, Revision 5.0 5 - 5 Trimble S, VX, SPS & RTS Service Manual
F
4 Tighten screws
parallel.
Use two torque drivers
and tighten the screws
simultaneously of the
cover.
15 Ncm.

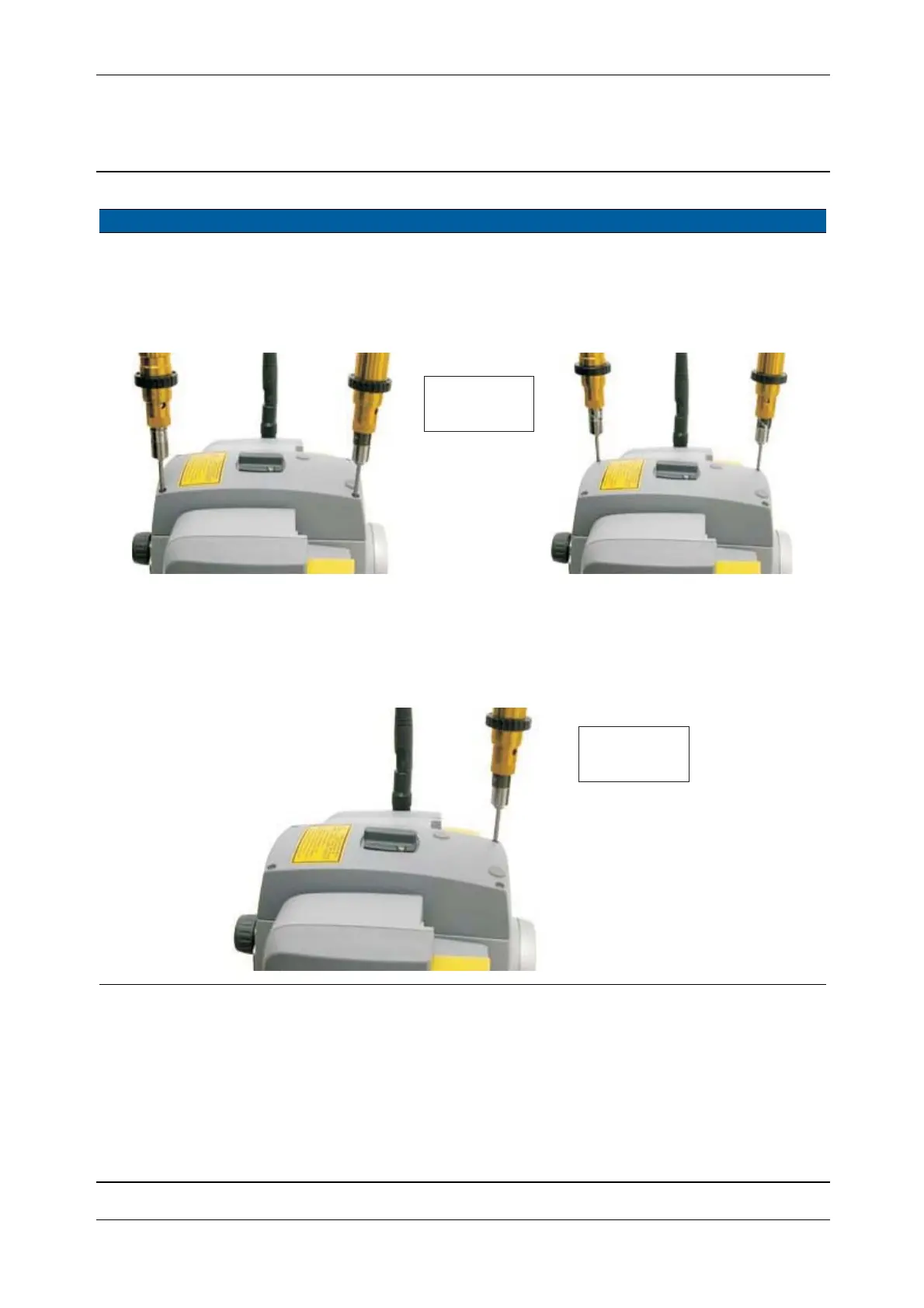

Fig. 5-5 Tighten screws parallel
5 Tighten each screw. Tighten the screws using
the torque wrench, no
specific order is
necessary.
35 Ncm.
Fig. 5-6 Tighten each screw
Item Performance Action Result Notes
15 Ncm /
1.3 lbfin
35 Ncm /
3.1 lbfin
