Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 32 P/N 57150002, Revision 5.0
F

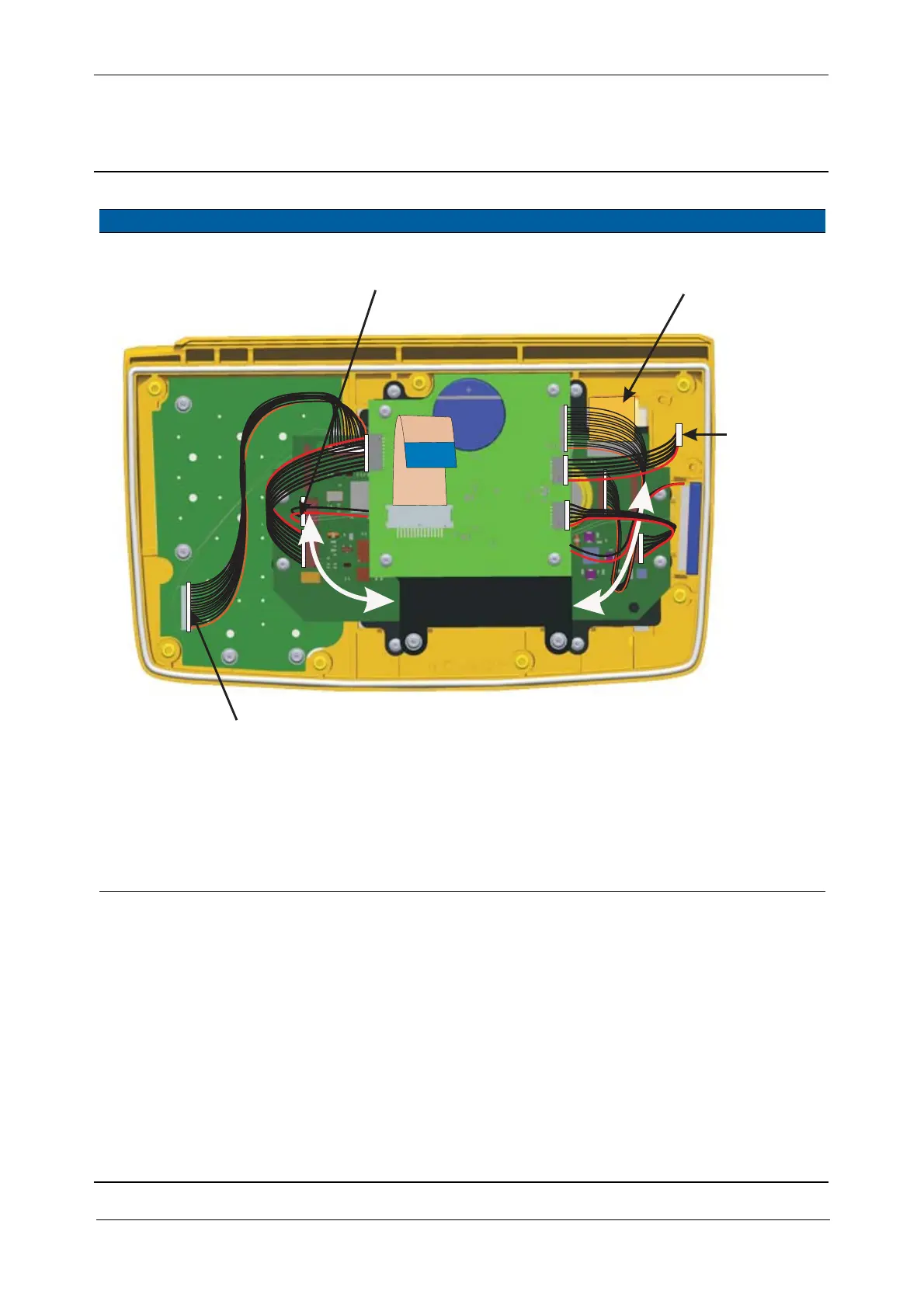

Fig. 5-31 Disconnect cables
4 Remove IAB and
Quimby board
Unscrew the 4 screws
holding the display
frame and remove IAB
board, IAB frame,
Quimby board and
Display frame
Item Performance Action Result Notes
C
A
To HRU
board
B
