Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 34 P/N 57150002, Revision 5.0
F

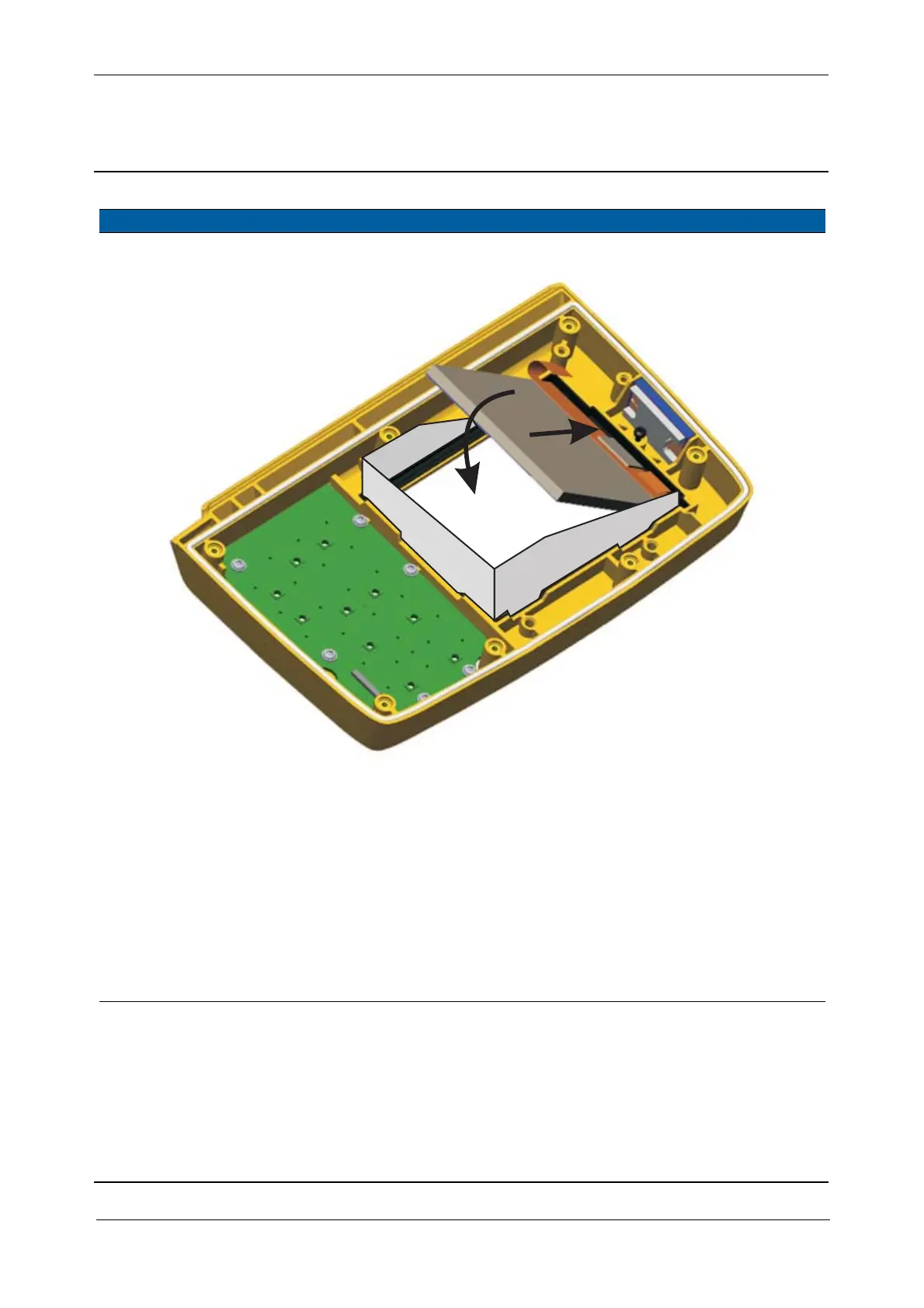

Fig. 5-33 Mounting display
9 Mount IAB and
Quimby board
A. Mount IAB board,
IAB frame,
Quimby board and
display frame to the
front cover, see Fig.
5-32 on page 5-33
B. Tighten the 4
screws crosswise
with a torque
wrench
C. Lock the screws
with glue MS1855
4 Ncm.
Item Performance Action Result Notes
C
D
