Trimble S User Manual

Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 45 Trimble S, VX, SPS & RTS Service Manual
F
Fig. 5-42 Removal of vertical angle disc

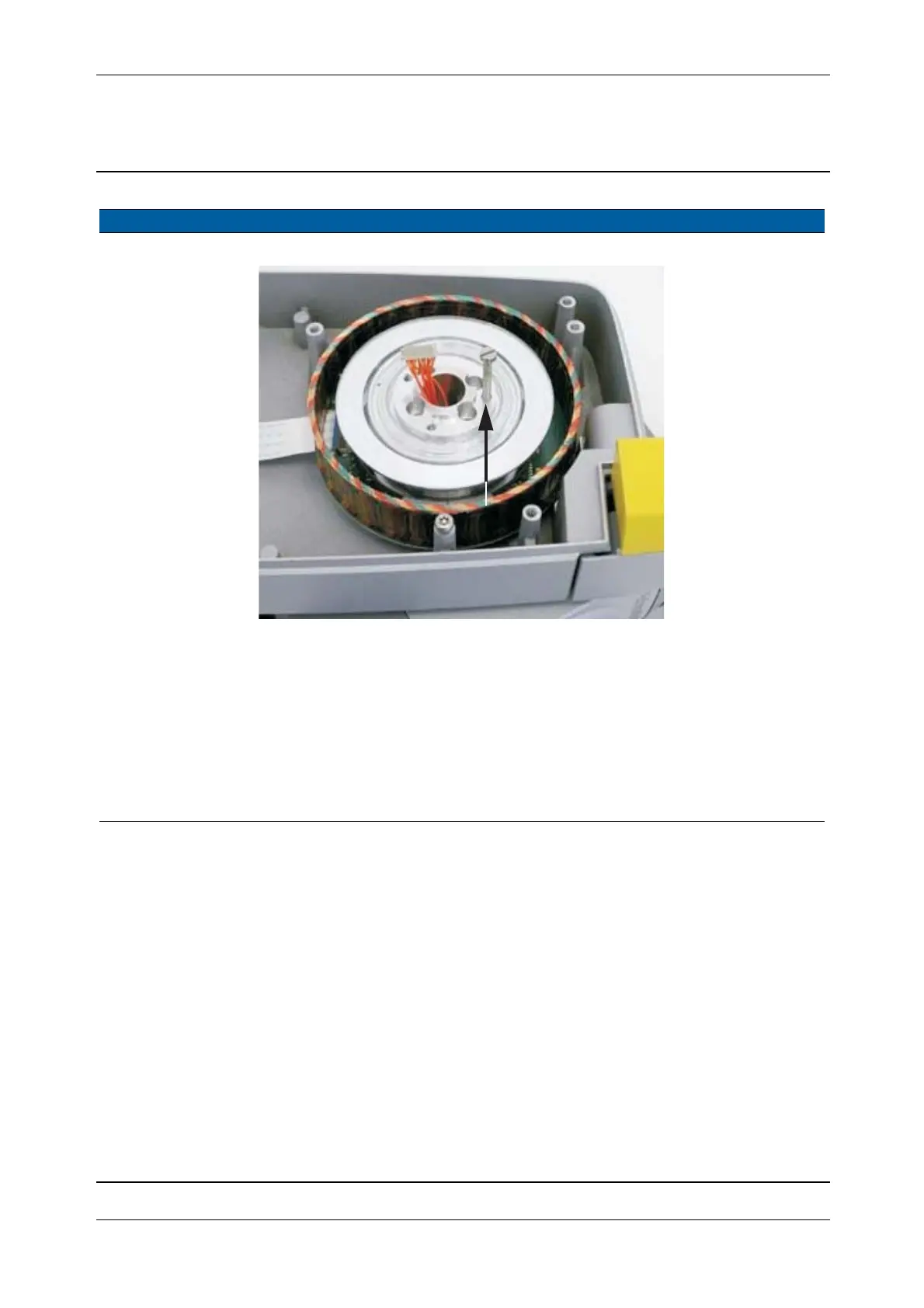

6 Replace MSB board
incl. motor winding.
A. Remove the four
screws and pull out the
motor winding.
B. Mount the motor
winding, use the
centring tool, see Fig.
5-44 on page 5-46 .
C. Tightening the four
screws and remove the
centring tool.
100 Ncm. Use a torque wrench
with a torx T10 bit.
Item Performance Action Results Notes
D
