Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 46 P/N 57150002, Revision 5.0
F

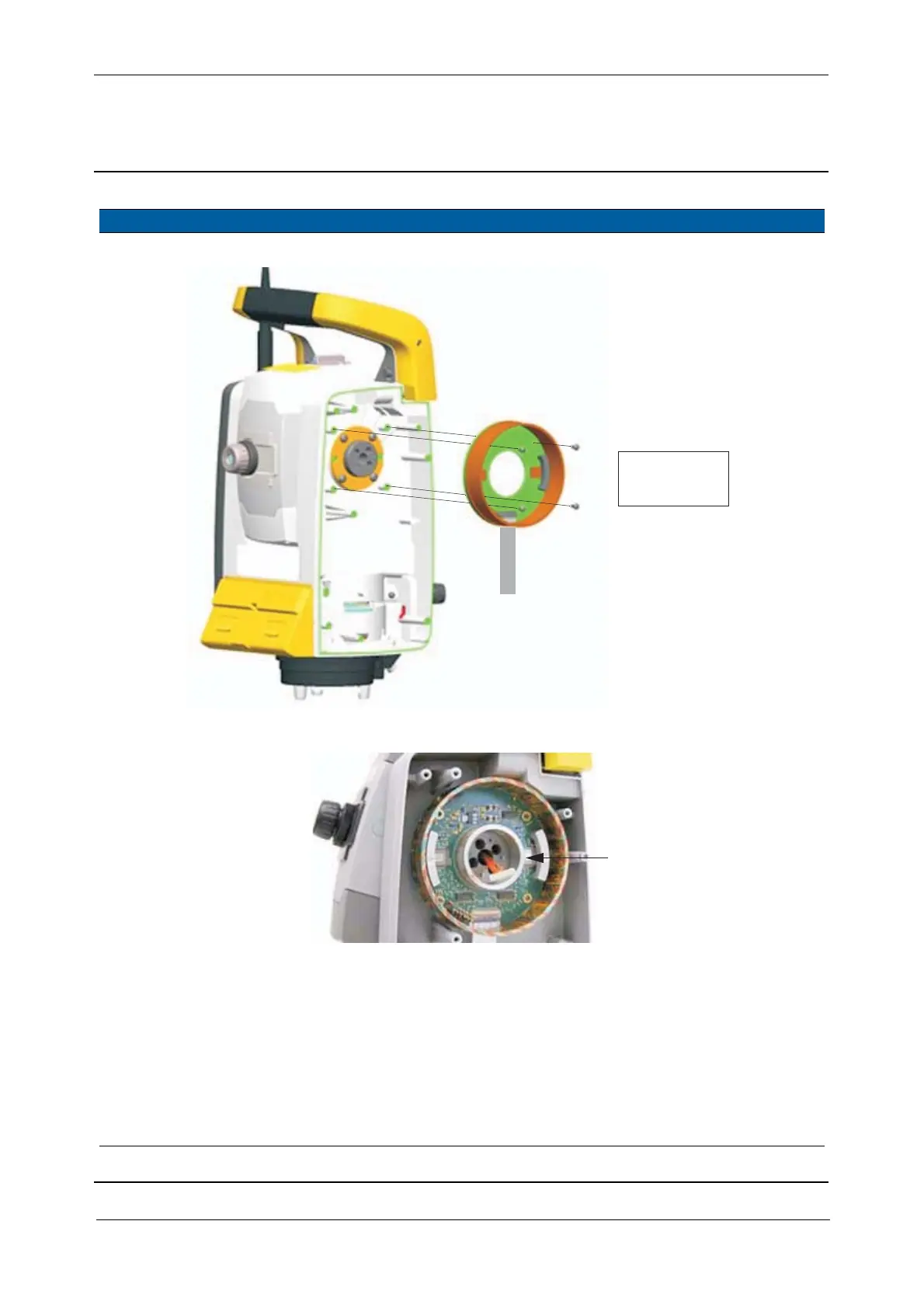

Fig. 5-43 Vertical MSB board replacement
Fig. 5-44 Centring of Motor winding
7 Mount angle disc and
SRC board incl.
magnets together.
A. Place vertical angle
disc in the centring
tool.
B. Mount SRC board incl.
magnets, align the
connector to the mark
on the angle disc, see
arrow in Fig. 5-45.
C. Tighten the three
screws.
100 Ncm. Use a torque wrench
with a torx T10 bit.
Note – make sure the
surface is clean, no
dust, dirt or
fingerprints. If so
clean using alcohol
& water.
Item Performance Action Results Notes
MSB board incl.
motor winding
100 Ncm /
8.8 lbfin
C
G
B
