Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 47 Trimble S, VX, SPS & RTS Service Manual
F

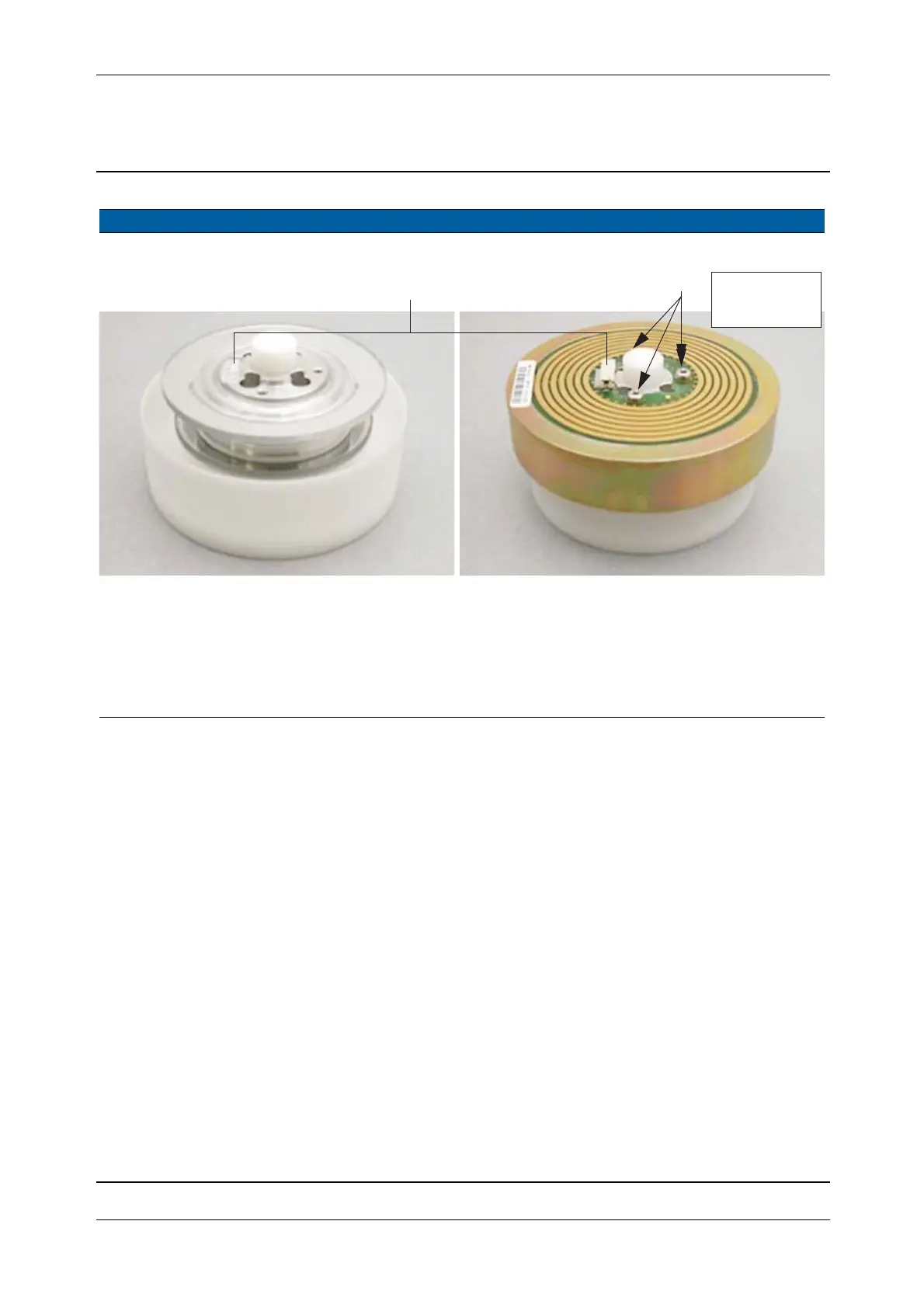

Fig. 5-45 Assembling of vertical angle disc and SRC board incl. magnets in centring tool
8 Mount angle disc
together with SRC
board incl. magnets to
instrument.
A. Mount the assembly in
the instrument.
B. Tighten the four
screws.
C. Connect the cable.
100 Ncm / 8.8
lbfin
Note – make sure the
surface is clean, no
dust, dirt or
fingerprints. If so
clean using alcohol
& water.
Item Performance Action Results Notes
AB
C
100 Ncm /
8.8 lbfin
Connector position
