Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 57 Trimble S, VX, SPS & RTS Service Manual
F

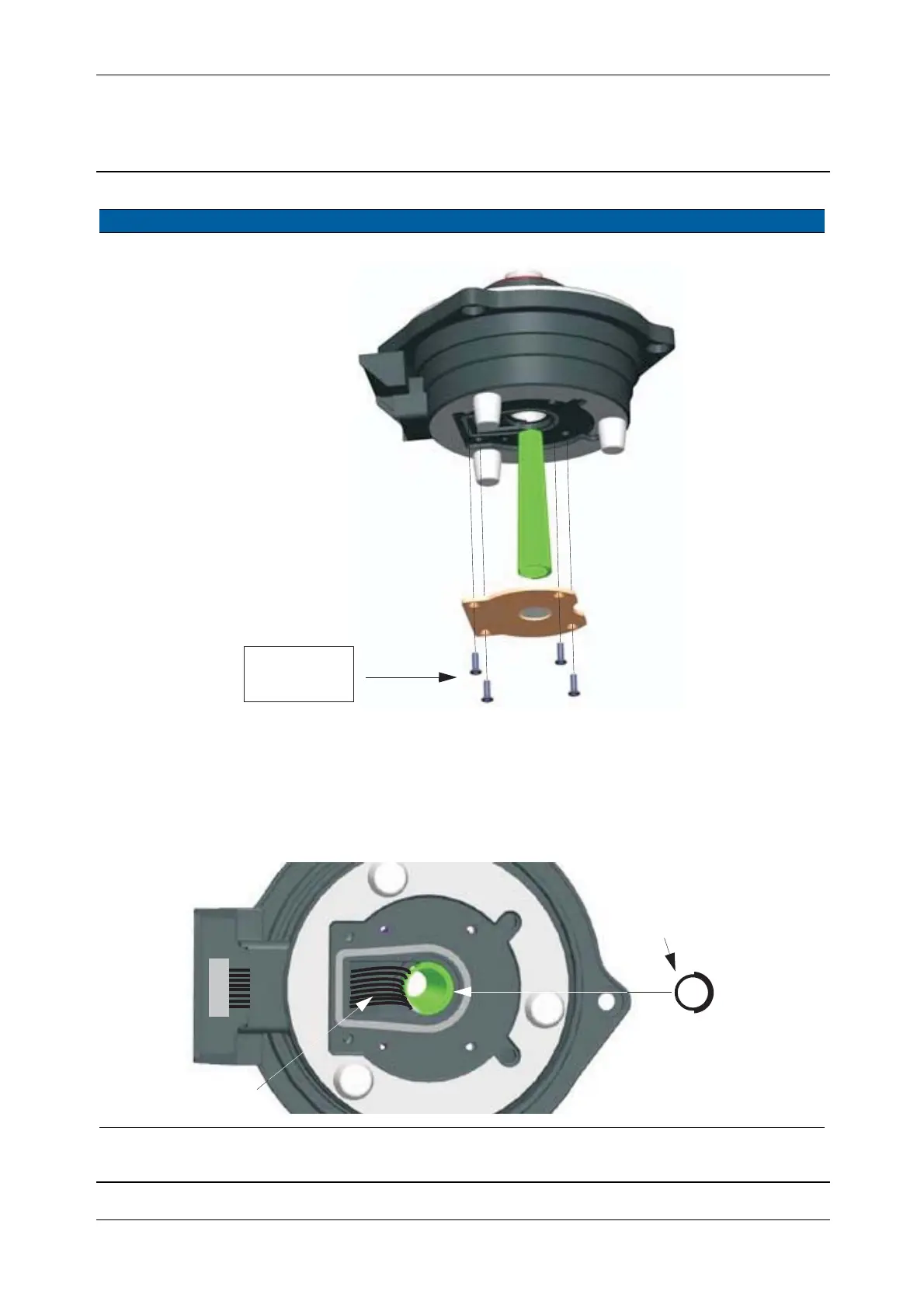

Fig. 5-54 Tube and lid removed
7 Replace base unit.
8 Mount FFB board incl.
Hirose connectors.
A. Mount the cable.
B. Mount FFB board incl.
Hirose connectors, see
page 5-54.
Fig. 5-55 Mounting of cable and tube
Item Performance Action Results Notes
55 Ncm /
4.9 lbfin
Mount tube with the
thinner half towards
the connector side
Cable
