Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 70 P/N 57150002, Revision 5.0
F

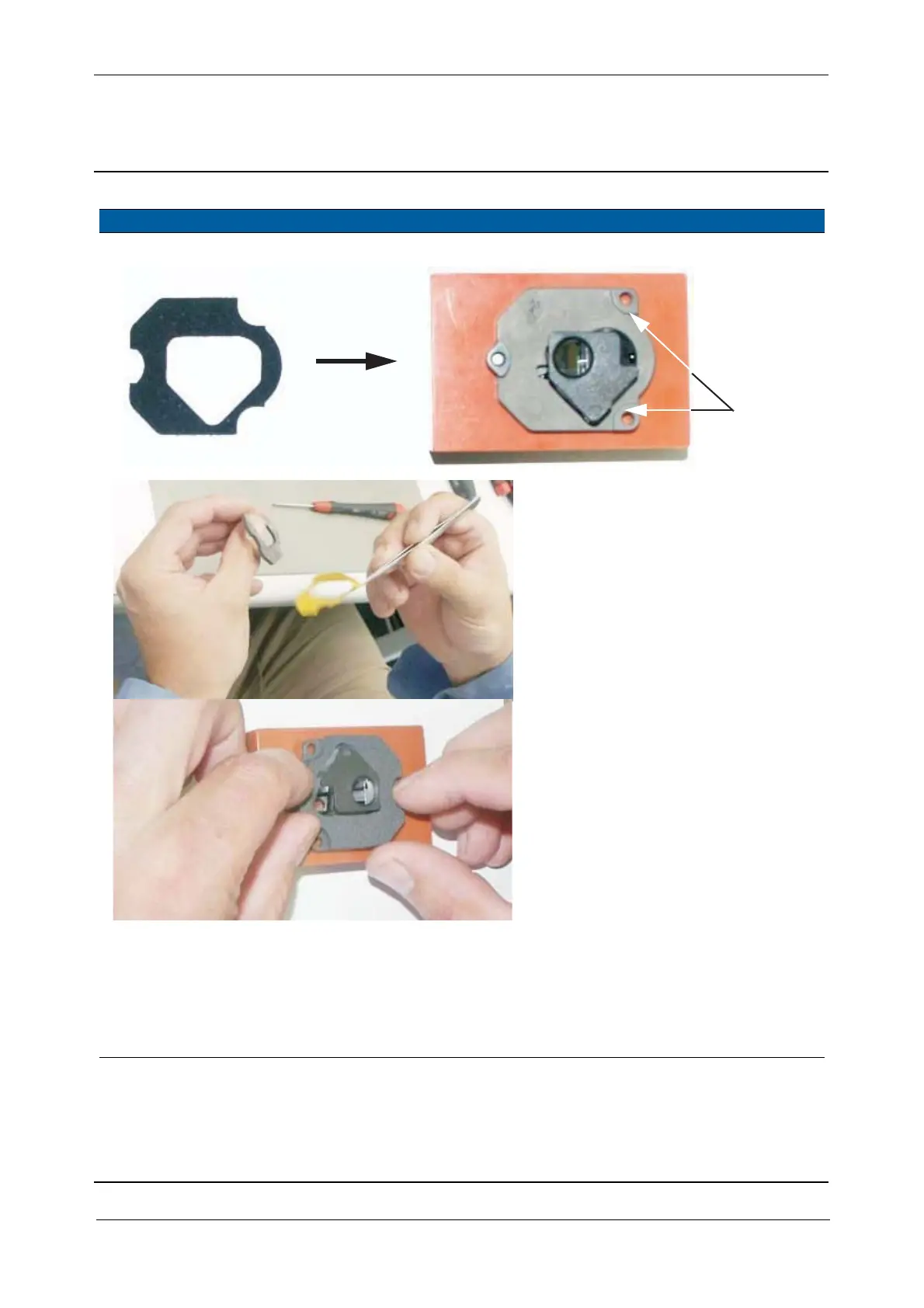

Fig. 5-66 Gasket gluing procedure
4 Mount Porro prism
assembly.
A. Insert porro prism
assembly.
B. Mount the screws but
do not tighten them.
See Fig. 5-65 on page 5-69
.
Item Performance Action Result Notes
Gasket
Porro prism
assembly
Remove the protective foil
from the gaskets gluing side
Mount the gasket onto the
rear side of the porro prism assembly
Point of special
attention
A
A. the gasket has to be placed very
close to the edges
Note:
The gluing surface sticks very quickly
To Next Page
