Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 71 Trimble S, VX, SPS & RTS Service Manual
F
5 Preparation for
adjustment
A. Mount reticle centring
tool.
B. Fasten it by the two
screws.
C. Press the porro prism
assembly against the
tool.
D. Fasten the three
screws.

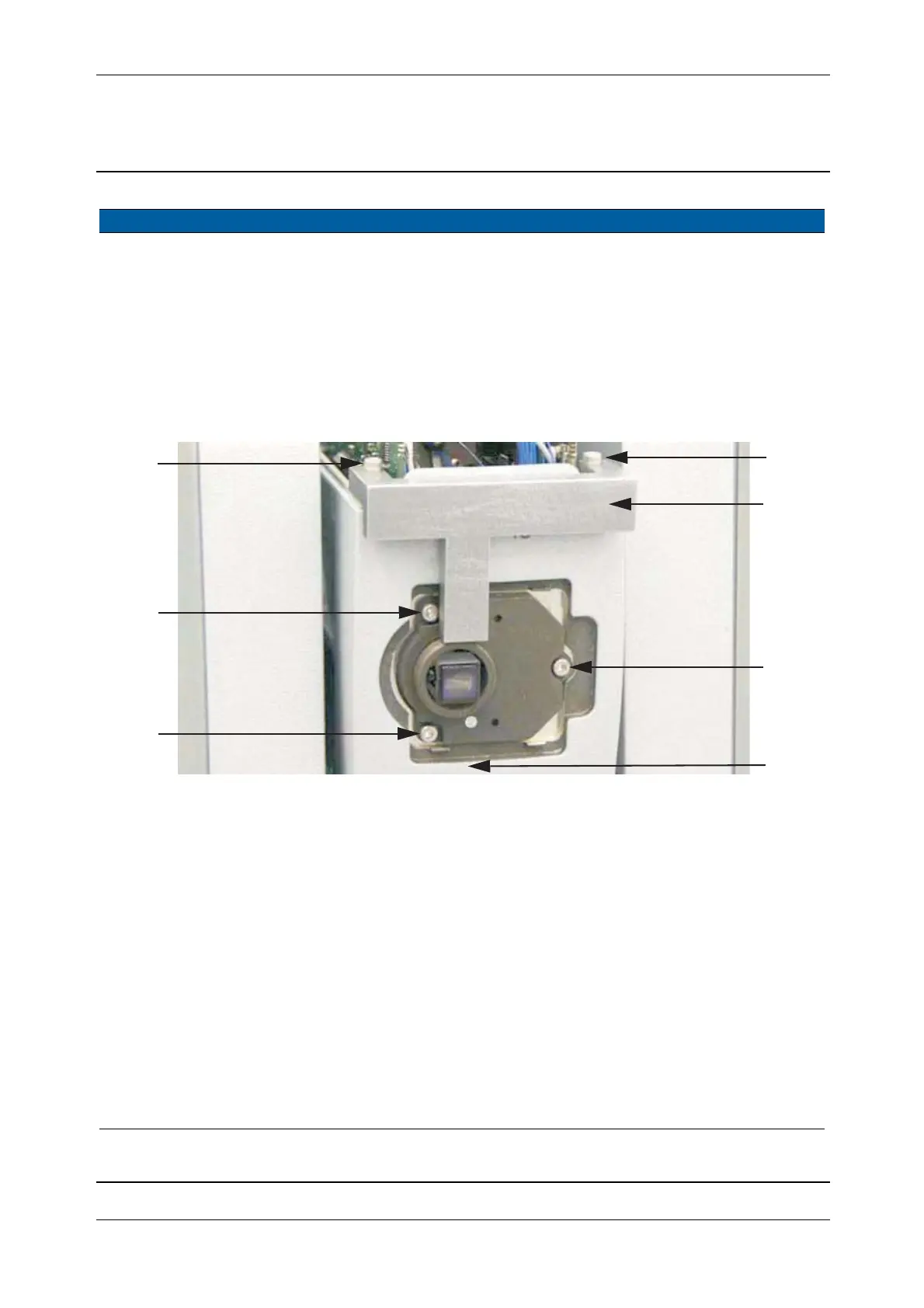

Fig. 5-67 Reticle centring tool
6 Mount eyepiece. Mount eyepiece cover and
eyepiece, See Fig. 5-65 on
page 5-69 .
7 Adjust reticle. see page 6-43.
8 Align tracker receiver
to the cross-hairs.
see page 6-133.
9 Adjust transmitter and
receiver fibre to cross-
hairs.
See Fig. 6-58 on page 6-63
or Fig. 6-62 on page 6-65.
10 If a DR300+ / DR
PLUS, adjust laser
pointer to cross-hairs.
see page 6-51. EDM High Precision
transmitter is the
same as the laser
pointer.
11 Mount distance unit
cover.
see page 5-3.
Item Performance Action Result Notes
A
B
B
C
D
D
D
