Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 90 P/N 57150002, Revision 5.0
F

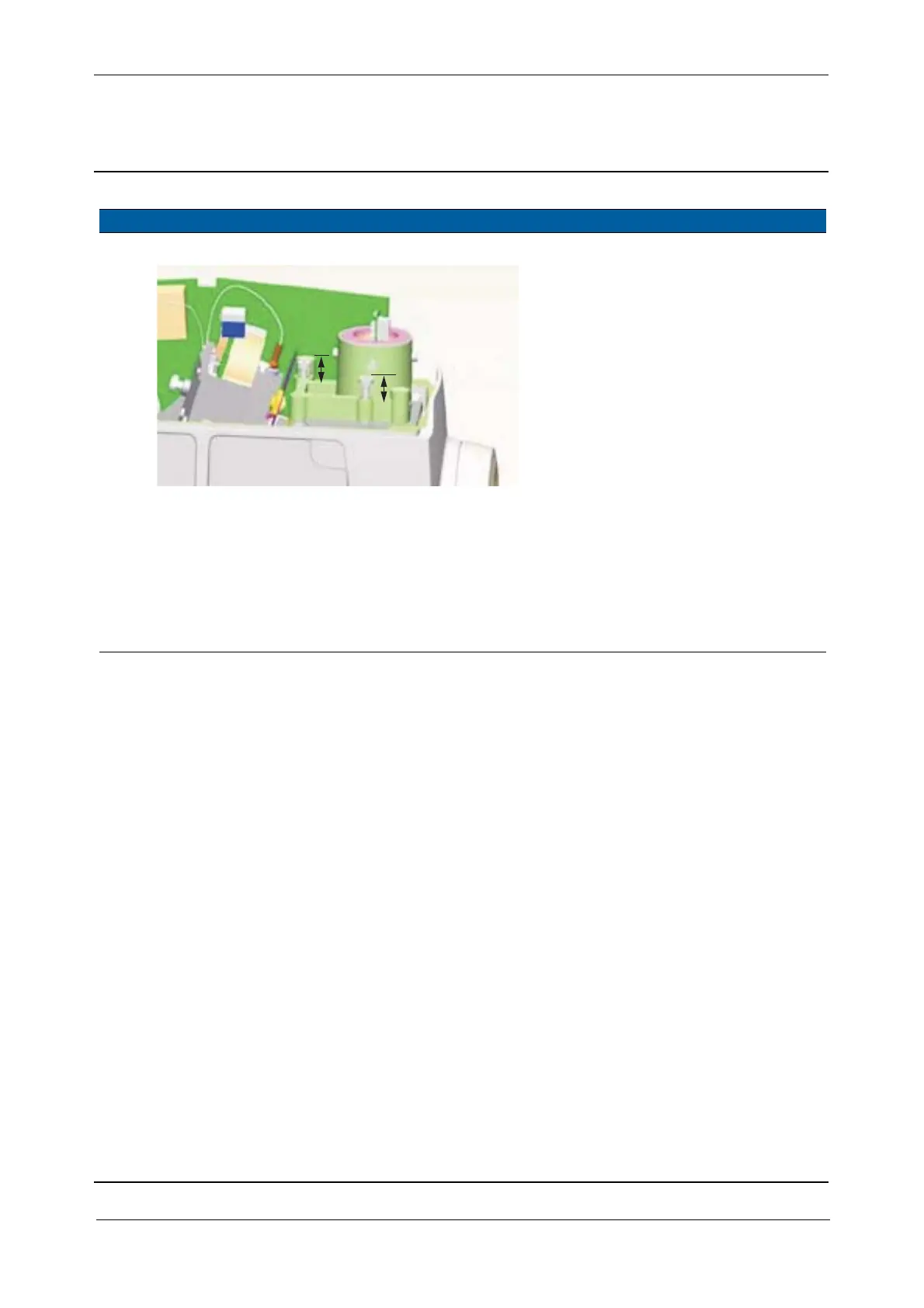

Fig. 5-87 Fixing screws of the Laser
8 Mount EDM boards. Mount the EDM board and
connect all cables and
boards.
Adjustment of laser
pointer produces
tracker transmitter
adjustment in the
same time.
9 Align laser pointer. See “Laser pointer
alignment” on page 6-51..
Item Performance Action Result Notes
Tighten the screws
until stop is reached.
Then turn them back
2turns=5,0mm
5turns=6,5mm
2 turns
(5,0 mm)
5 turns
(6,5 mm)
B
B
