Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 89 Trimble S, VX, SPS & RTS Service Manual
F
6 Mount tracker
transmitter board.
A. Thread the tracker
transmitter board
carefully through the
gap, see Fig. 5-86 on
page 5-89
B. Mount the tracker
transmitter board, see
Fig. 5-72 on page 5-75
.
25 Ncm. Help from the tracker
side of centre unit
with a cushioned
tweezers.

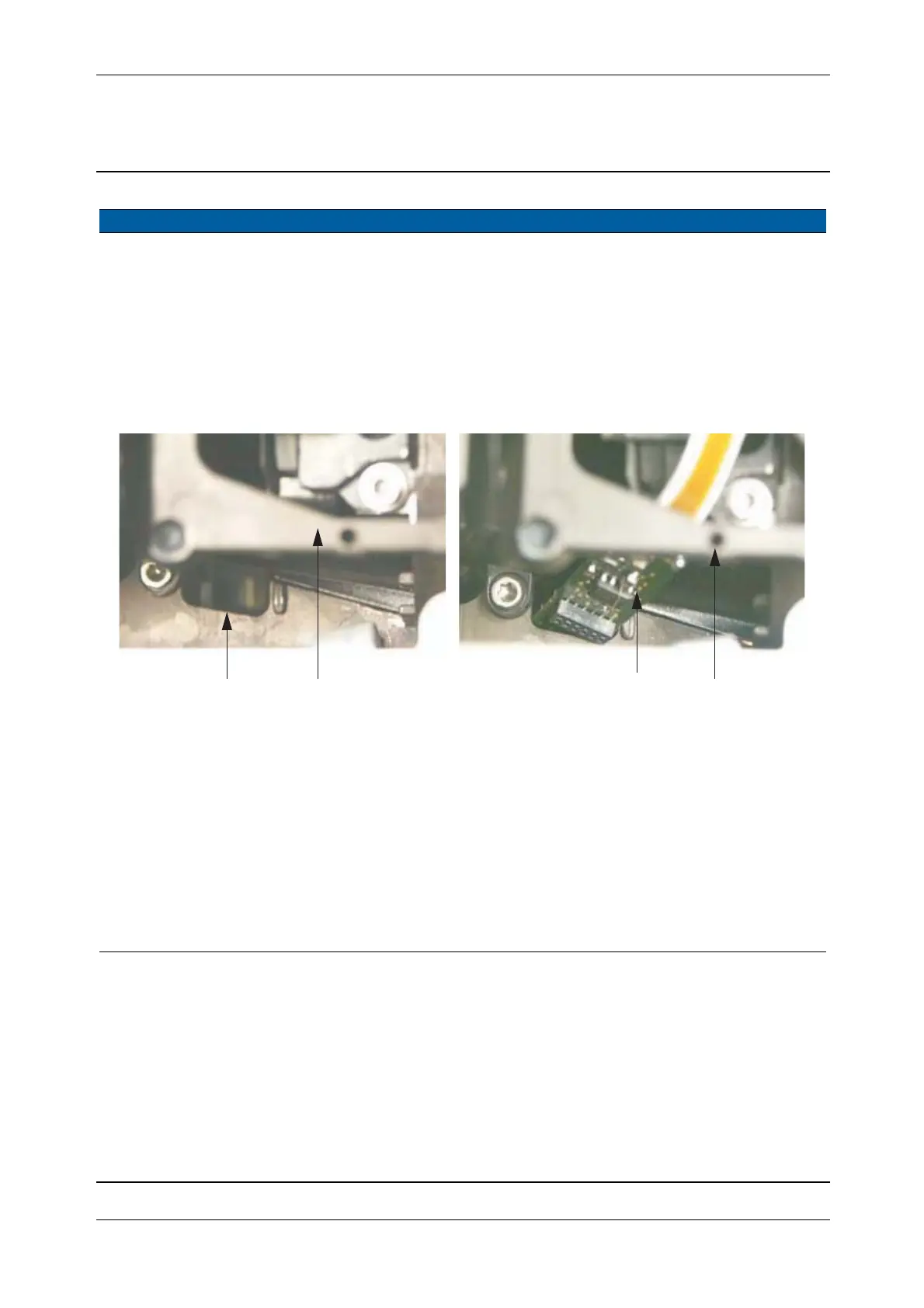

Fig. 5-86 Insertion of the Tracker transmitter board TFB
7 Mount laser pointer. A. Insert the transmitter
assembly in the
opposite way and
mount the two screws
with the springs, see
Fig. 5-85 on page 5-88
B. Tighten both screws to
the stop and release:
Horizontal screw - 2
turns (5,0 mm)
Vertical screw - 5
turns (6,5 mm)
It is possible to use a
vernier to check the
height of the screws.
Item Performance Action Result Notes
Gap EDM frame
(TFB board)
EDM frame
A
