Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 88 P/N 57150002, Revision 5.0
F
Cable connections in particular: see Fig. 5-68 on page 5-73 .
A. ribbon cable - connecting both boards
B. coaxial cable - connecting transmitter board and laser pointer
C. ribbon cable - connecting transmitter board and SFC board
D. ribbon cable - connecting. transmitter board and greywedge
E. and F. coaxial cable - connecting both boards crosswise
5 Remove the laser
pointer with tracker
transmitter.
A. Lift the transmitter
board and turn it 90°,
see Fig. 5-85 on page
5-88
B. Press the laser pointer
assembly slightly
against the receiver
board and turn it out,
see.
C. ONLY REMOVE
THE TWO SCREWS
WITH SPRINGS.
Fix the board with
tape.

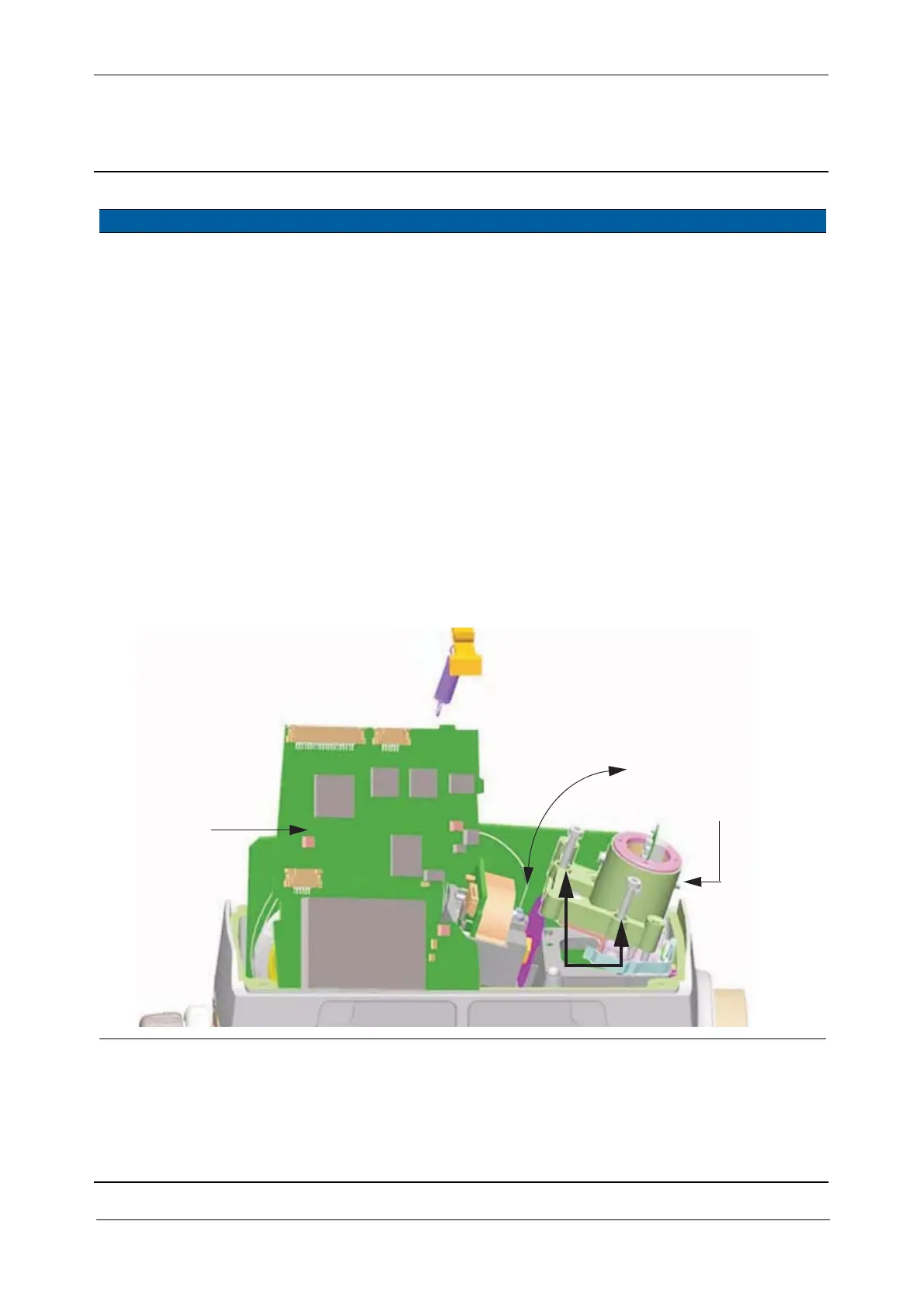

Fig. 5-85 Removal of the Laser pointer with tracker transmitter
Item Performance Action Result Notes
Laser pointer assembly
with attached Tracker
transmitter
B
A
C
To Next Page
