Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 92 P/N 57150002, Revision 5.0
F

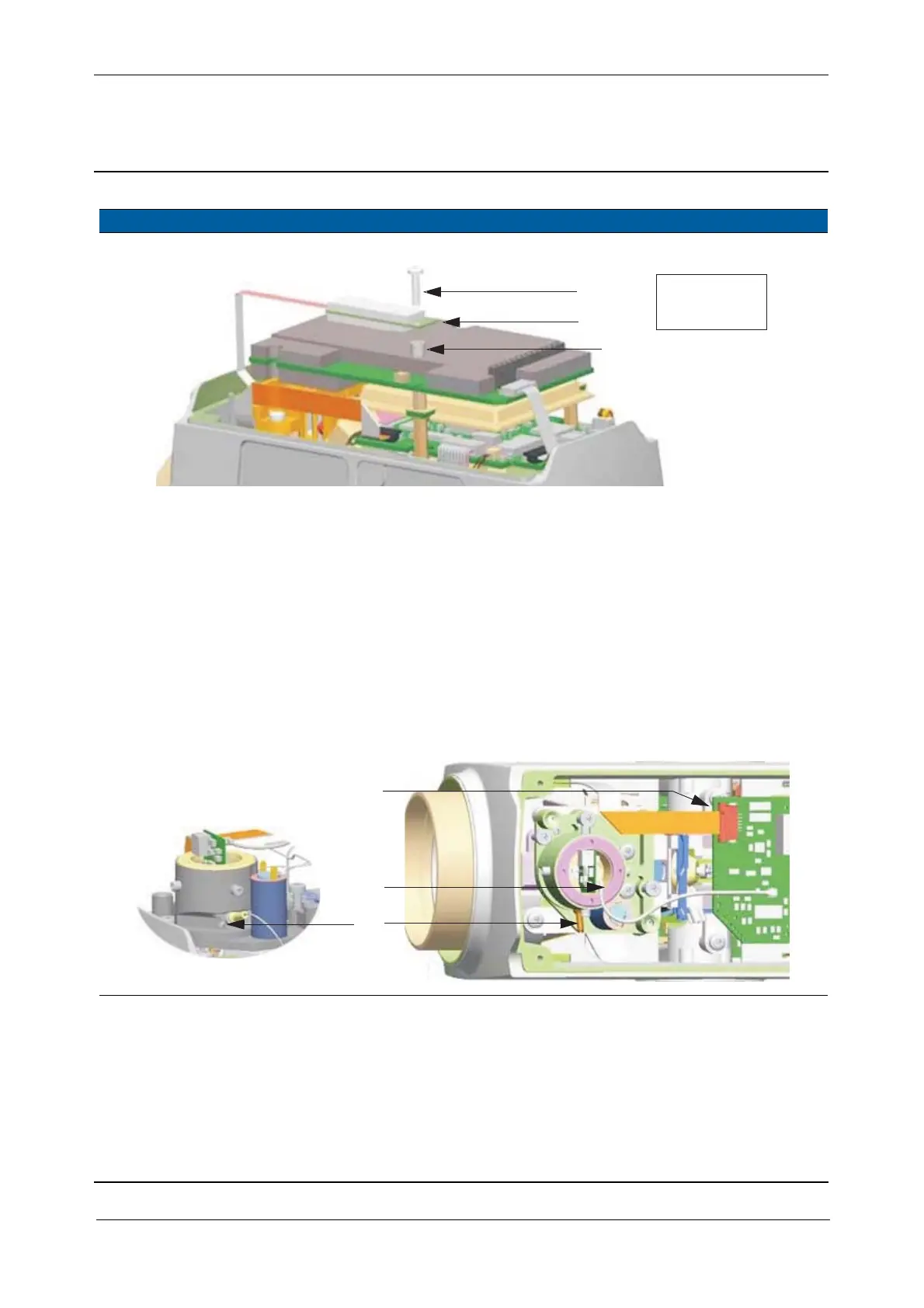

Fig. 5-88 Tracker transmitter board
4 Disconnect cables and
reference fibre.
A. Turn the center unit to
face one.
B. Disconnect coaxial
cable from transmitter
unit.
C. Disconnect filter motor
cable from transceiver
board.
D. Loosen the reference
fibre clamp screw and
remove reference
fibre.
0.7 mm allen key.
Fig. 5-89 Cable connection Transmitter unit
Item Performance Action Result Notes
A
B
C
25 Ncm /
2.21 lbfin
B
D
C
To Next Page
