Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 102 P/N 57150002, Revision 5.0
F

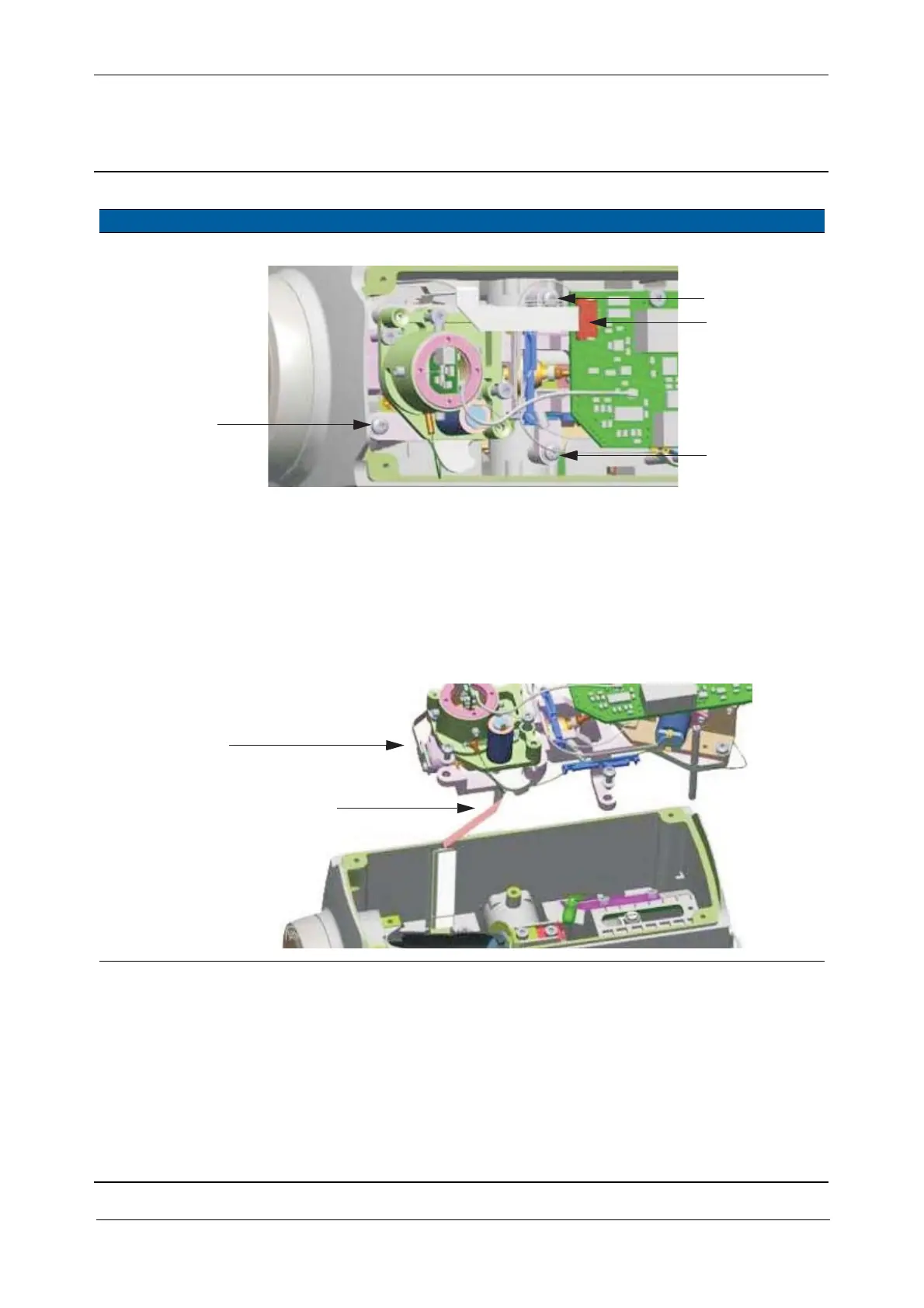

Fig. 5-101 Removal EDM High Precision/DR Standard.
5 Remove EDM High
Precision distance
unit.
A. Carefully remove the
EDM with the tracker
transmitter board.
B. Thread the tracker
transmitter board
carefully through the
gap, see Fig. 5-103 on
page 5-103 .
Release the reference
fibre from the pad.
Fig. 5-102 Replacement of EDM High Precision/DR Standard
Item Performance Action Result Notes
B
C
C
C
A
Tracker transmitter
cable and board
