Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 103 Trimble S, VX, SPS & RTS Service Manual
F

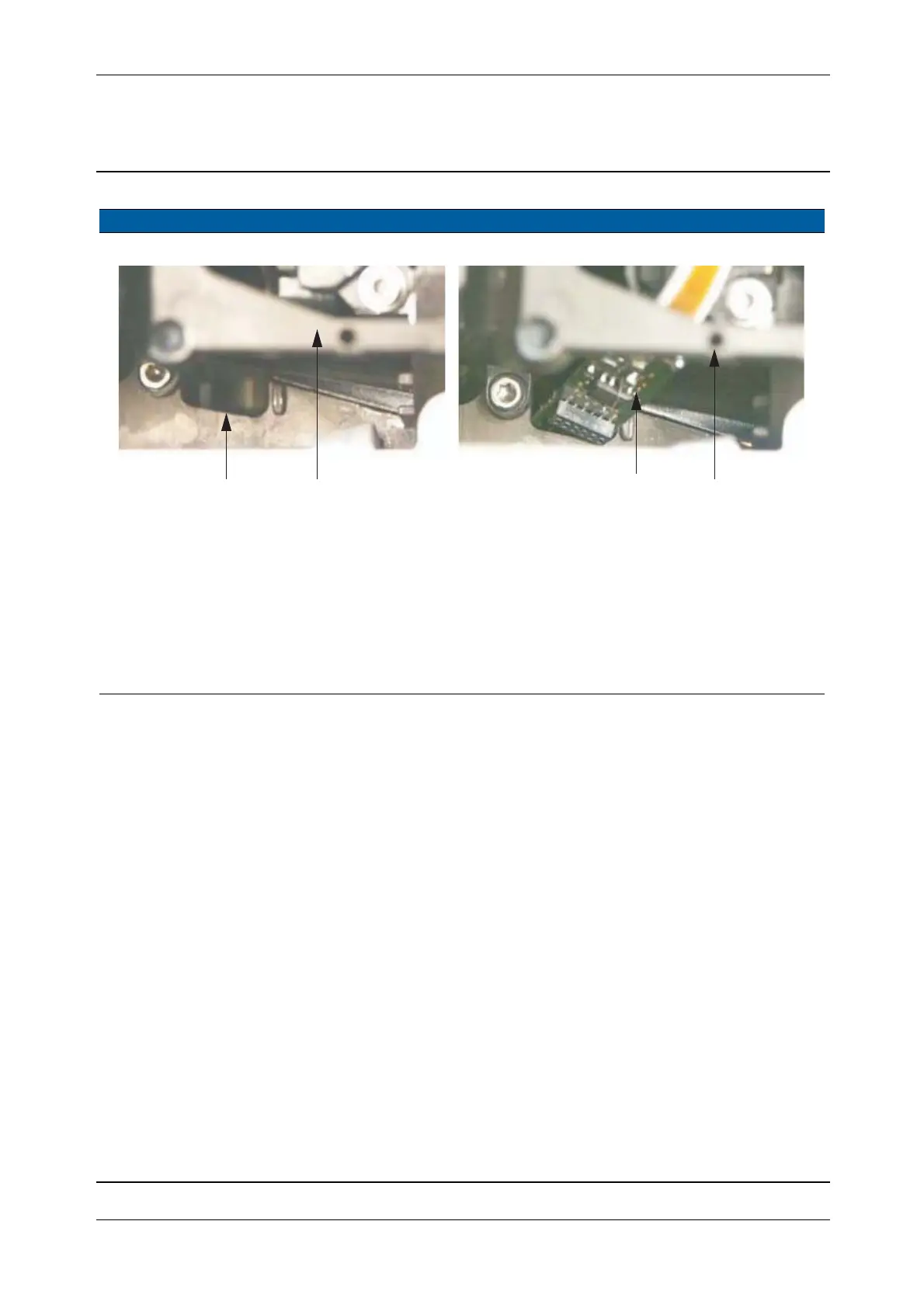

Fig. 5-103 Insertion of the Tracker transmitter board TFB
6 Remove following
units from the
dismantled EDM
frame.
A. Transmitter unit, see
page 5-91
B. Transceiver board, see
page 5-95.
C. Greywedge motor, see
page 5-99.
D. Switch motor, see page
5-97.
Item Performance Action Result Notes
Gap EDM frame
(TFB board)
EDM frame
B
