Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 104 P/N 57150002, Revision 5.0
F

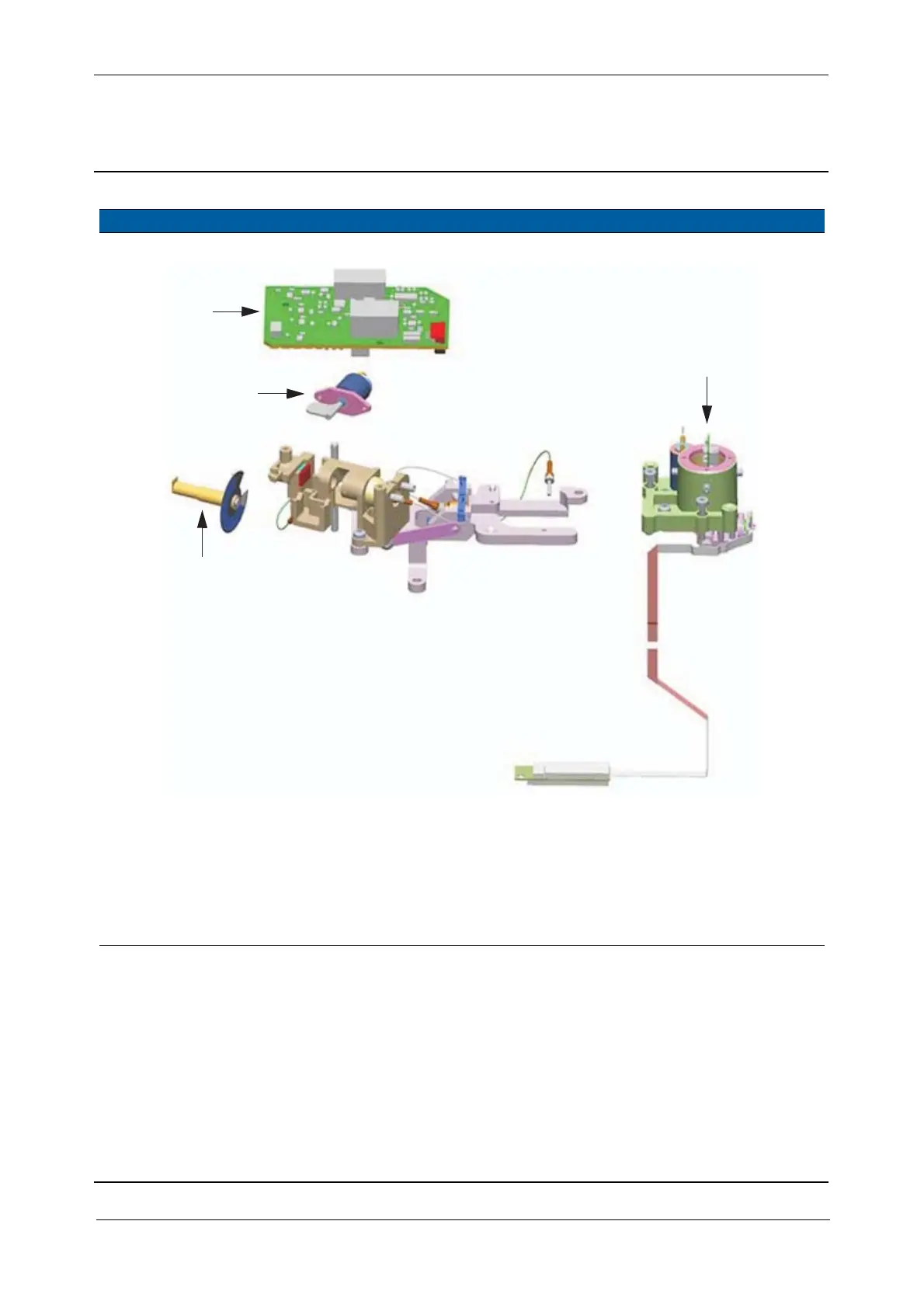

Fig. 5-104 EDM frame with removed parts
7 Remove reference
fibre and EDM base
screw.
A. Loosen the ferule
screw.
B. Slide out the fibre
holder together with
the reference fibre.
C. Remove the EDM base
screw.
0.7 mm allen screw.
Item Performance Action Result Notes
A
B
C
D
