Trimble S User Manual

Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 106 P/N 57150002, Revision 5.0
F

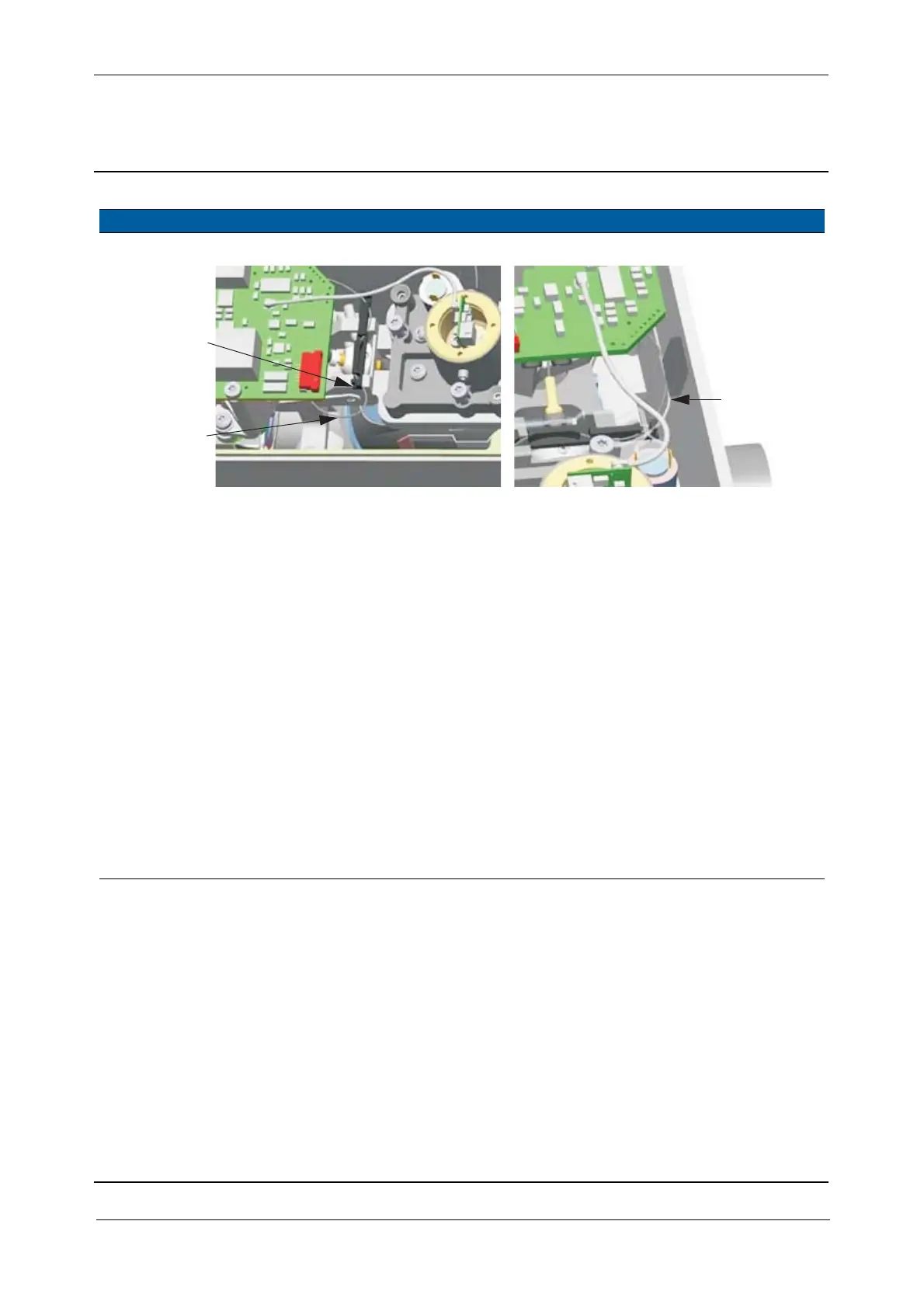

Fig. 5-106 Receiver fibre and receiver fibre holder position
11 Mount tracker
transmitter board.
Mount the board with
spacer and screw, see Fig.
5-100 on page 5-101 .
25 Ncm.
12 Adjust transmitter and
receiver fibre.
see page 6-60.
13 Adjust reference fibre. see page 6-72.
14 Adjust receiver fibre
to APD maximum.
see page 6-105.
15 Check motors. see page 6-113.
16 Run verifications. see page 6-115.
17 Mount distance and
tracker unit cover.
see page 5-3.
18 Mount handle. Use a torx T30 screw
driver.
19 Perform offset
determination.
see page 6-82.
Item Performance Action Result Notes
Receiver
fibre holder
receiver
fibre
underneath
pad
Position
in line
with EDM
frame
A
B
C
Min. 15mm
radius
