Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 111 Trimble S, VX, SPS & RTS Service Manual
F

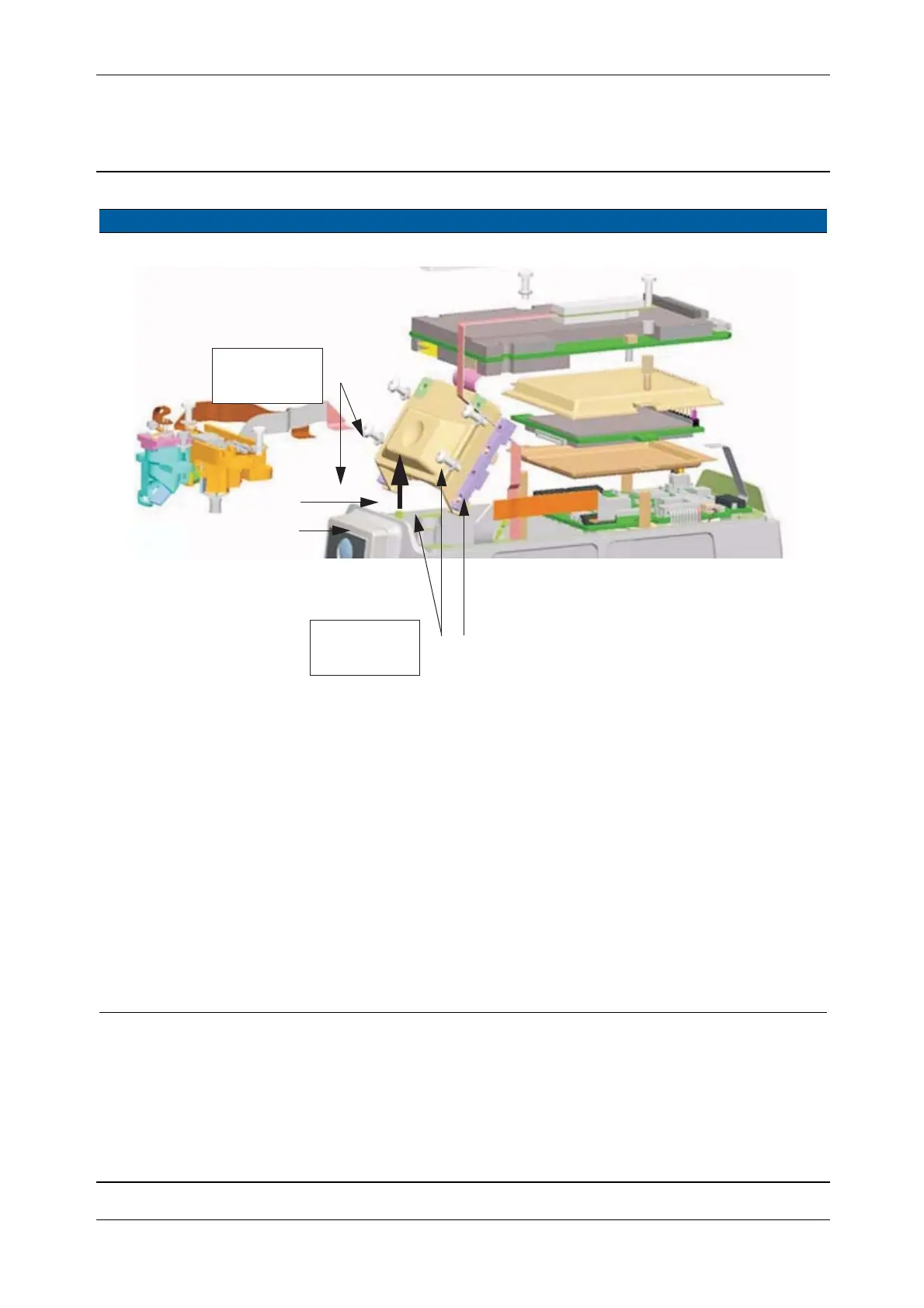

Fig. 5-109 Receiver and fixing screw
4 Mount tracker
receiver.
Mount receiver with four
screws and washers.
50 Ncm.
Note – Make sure the
lens is clean, no dust,
dirt or fingerprints. If
so clean using alcohol
& water.
5 Align tracker receiver. See page 6-133 Focus of tracker
receiver is a level 4
service.
6 Mount OTA and OTC
board and tracker
transmitter board
See Fig. 5-110 on page 5-
114 .
7 Mount Tracklight See page 5-113.
8 Mount tracker unit
cover.
See page 5-3.
Item Performance Action Result Notes
A
A
C
C
B
4.43 lbfin
50 Ncm /
50 Ncm /
4.43 lbfin
