Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 114 P/N 57150002, Revision 5.0
F

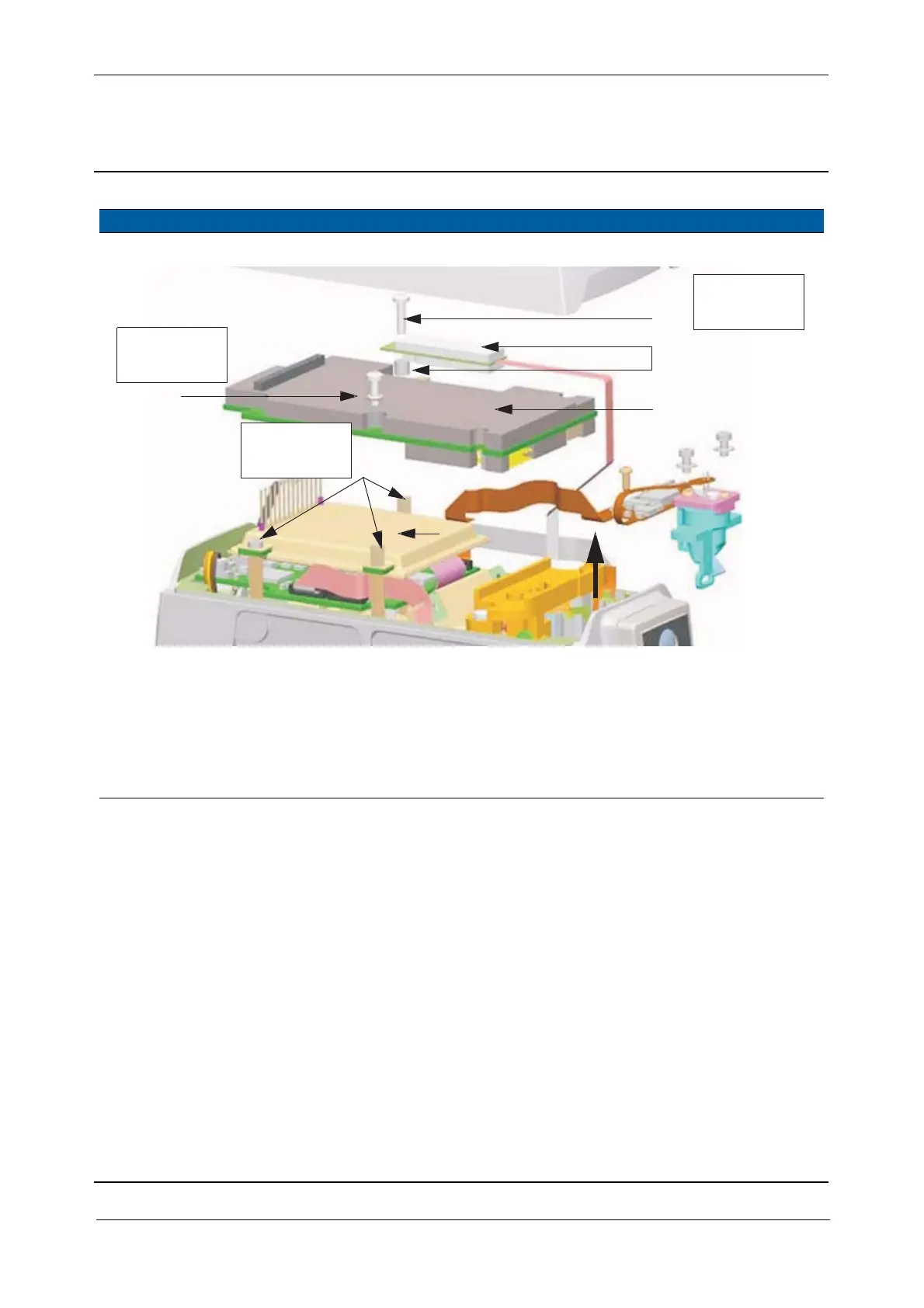

Fig. 5-110 Tracker unit boards and SCF board
3 Remove tracklight. A. Disconnect the
tracklight from SFC
board.
B. Remove the two
screws.
C. Lift up and remove the
tracklight group.
Item Performance Action Result Notes
A
B
C
D
E
F
2.21 lbfin
2.21 lbfin
2.21 lbfin
25 Ncm /
25 Ncm /
25 Ncm /
