Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 115 Trimble S, VX, SPS & RTS Service Manual
F

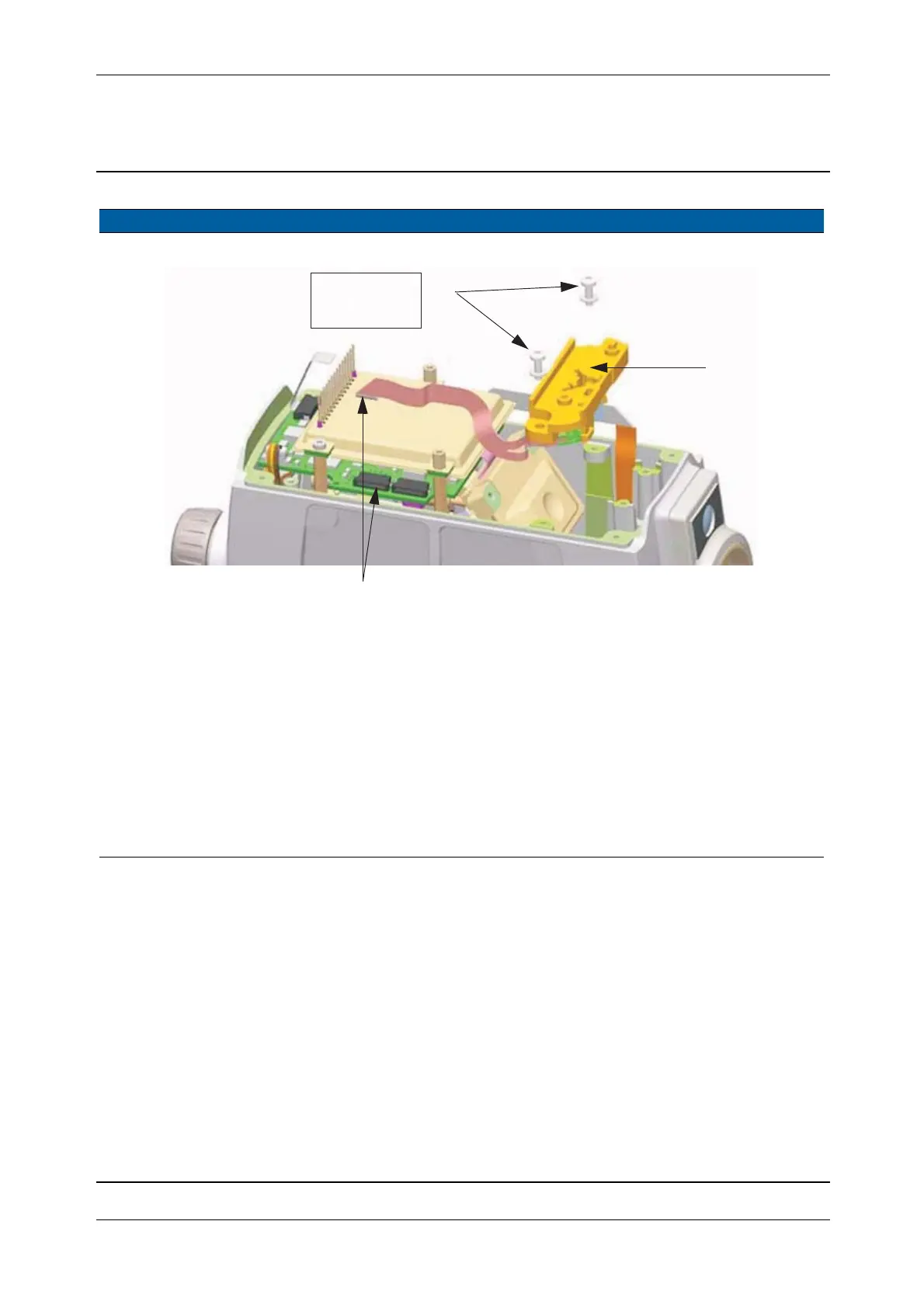

Fig. 5-111 Removal of tracklight
4 Mount new tracklight
group.
A. Insert the new
tracklight group.
B. Mount the screw.
See Fig. 5-111 on page 5-
115 .
25 Ncm.
5 Mount OTA and OTC
board and tracker
transmitter board.
See Fig. 5-110 on page 5-
114 .
25 Ncm.
6 Align tracklight. See page 6-149.
7 Mount tracker unit
cover.
See page 5-3.
Item Performance Action Result Notes
A
B
C
25 Ncm /
2.21 lbfin
