Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 128 P/N 57150002, Revision 5.0
F

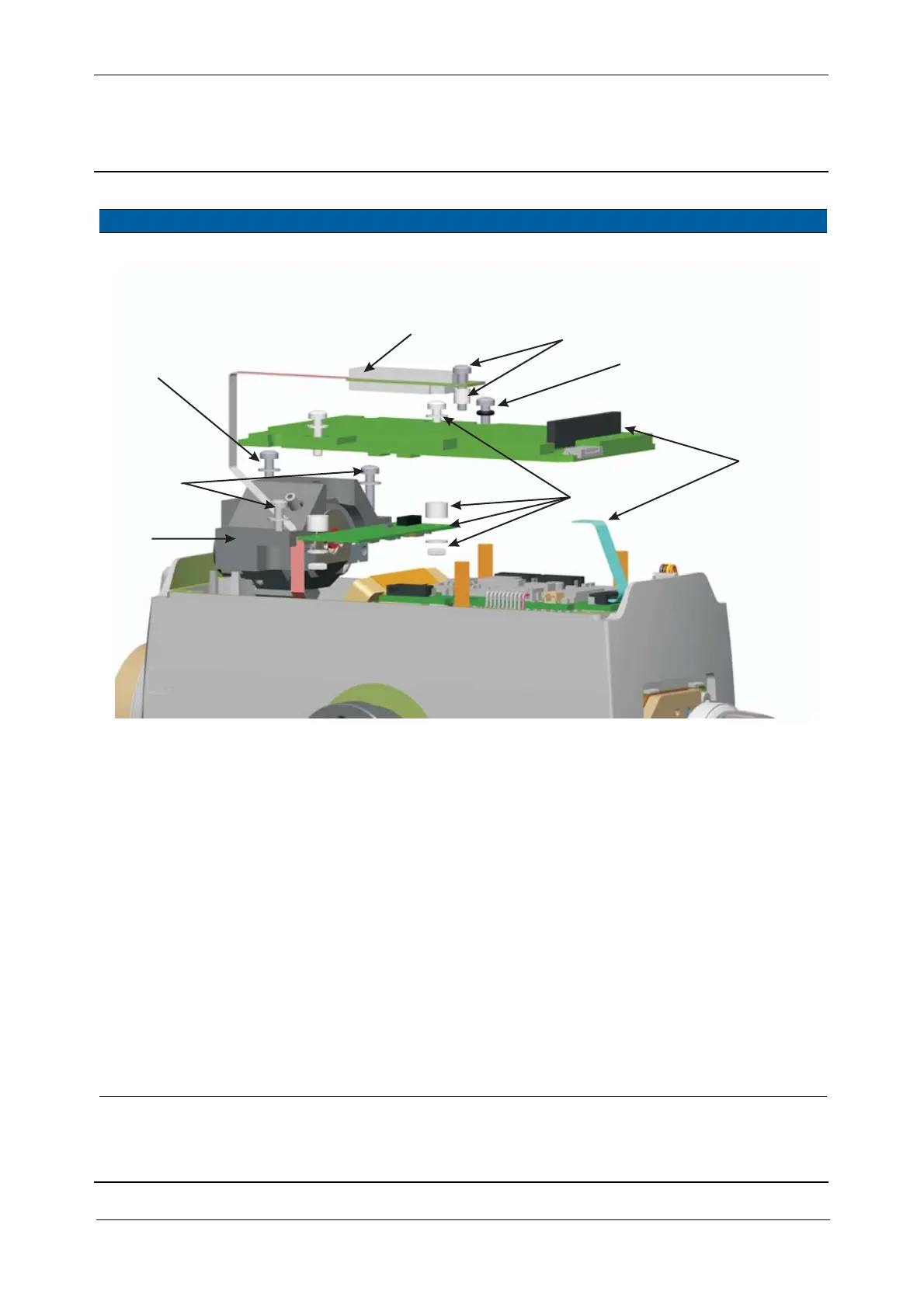

Fig. 5-119 TLR transmitter
3 Replace the TLR
module.
A. Mount the TLR
module. Push TLR
module towards the
front lens and to the
servo side cover.
B. Fix the three screws
with washers.
C. Connect the diode
driver board to the
OTC2 board. Mount
the plastic spacers
between and fit them
together with the nuts.
Lock with Glue MS
1855.
D. Connect the TFB and
OTC2 board and fix it
with screws A and C,
see Fig. 5-119 on page
5-128 .
TLR module:
60Ncm.
OTC2 board:
25Ncm.
Item Performance Action Result Notes
A
B
C
E
F
G
H
D
