Chapter 5
Maintenance and Repair
Trimble S, VX, SPS & RTS Service Manual5 - 134 P/N 57150002, Revision 5.0
F

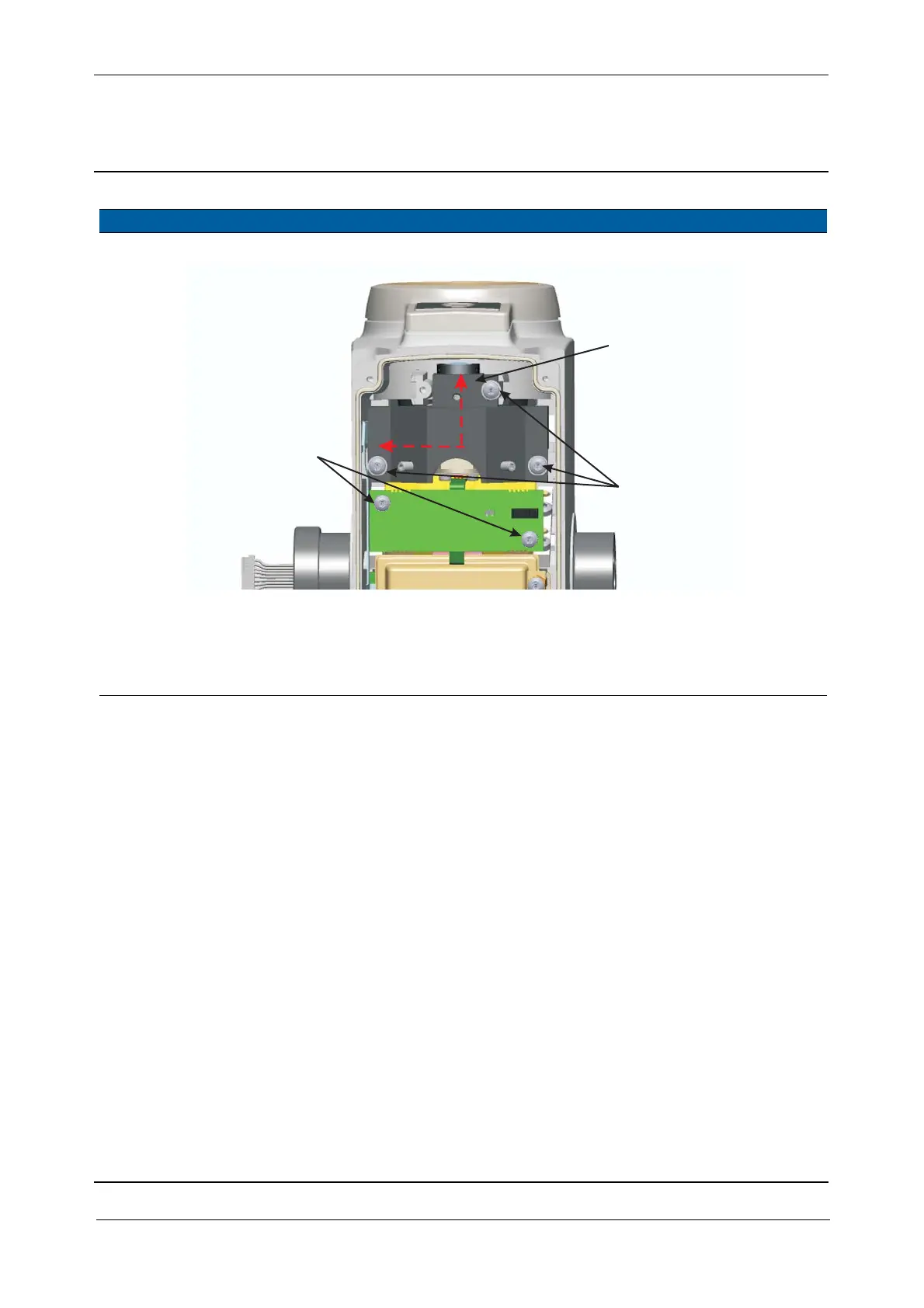

Fig. 5-126 Mount HPL module
4 Align High Power
Laser pointer.
See page 6-192.
5 Mount tracker unit
cover and handle.
See page 5-3.
Item Performance Action Result Notes
A
B
D
Push
60Ncm/5.31lbfin
25Ncm/2.21lbfin
