Chapter 5
Maintenance and Repair
P/N 57150002, Revision 5.0 5 - 133 Trimble S, VX, SPS & RTS Service Manual
F

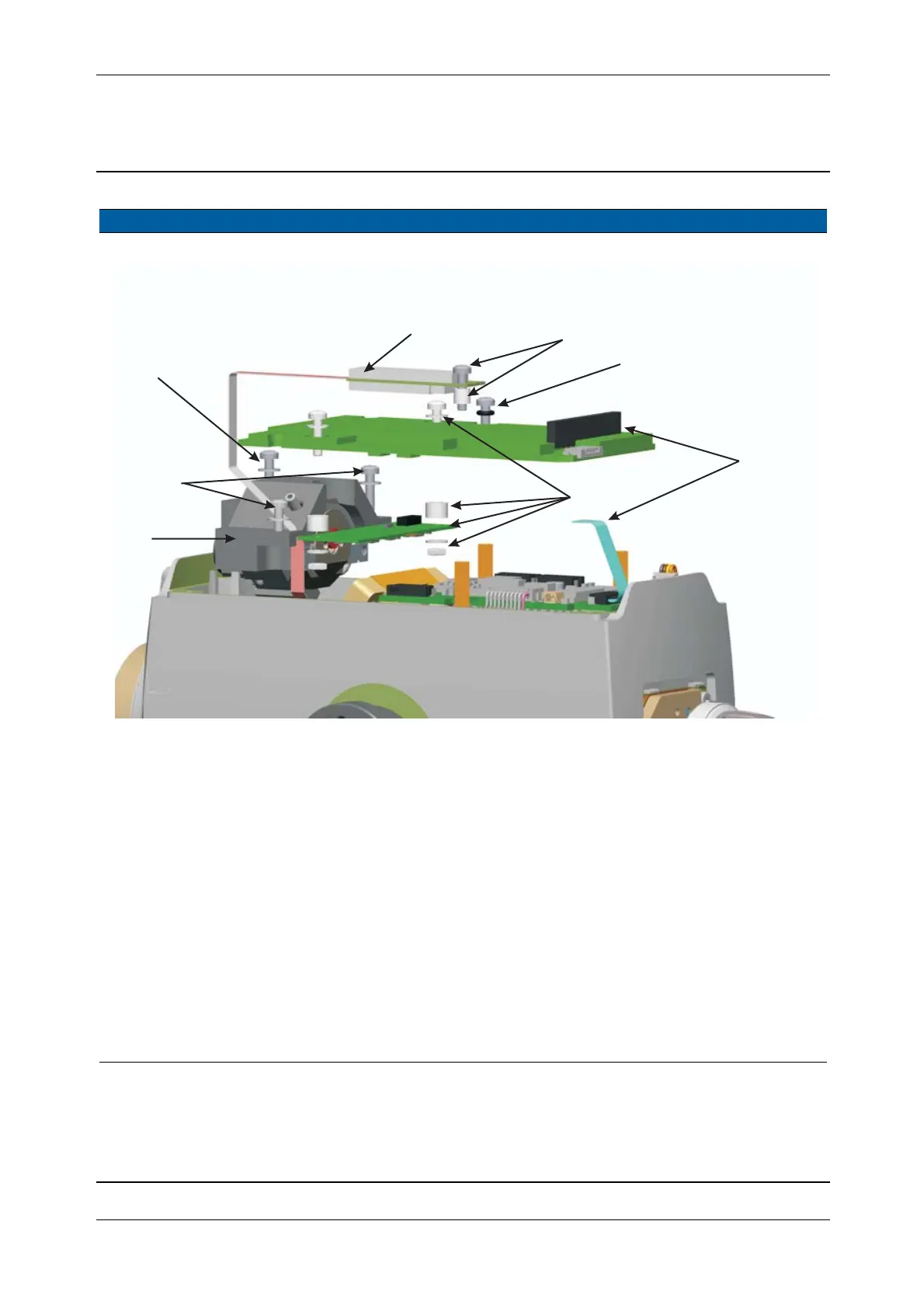

Fig. 5-125 High Power Laser module
3 Replace HPL module A. Push the HPL module
towards the front lens
and to the servo side
cover.
B. Fix the 3 screws with
washer.
C. Connect the diode
driver board to the
OTC2 board. Mount
the plastic spacers
between and fit them
together with the nuts.
Lock with Glue MS
1855.
D. Connect the TFB and
OTC2 board and fix it
with screws A and C,
see Fig. 5-125
HPL module:
60Ncm.
OTC2 board:
25Ncm.
Item Performance Action Result Notes
A
B
C
E
F
G
H
D
