Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 26
P/N 57150002, Revision 5.0
F

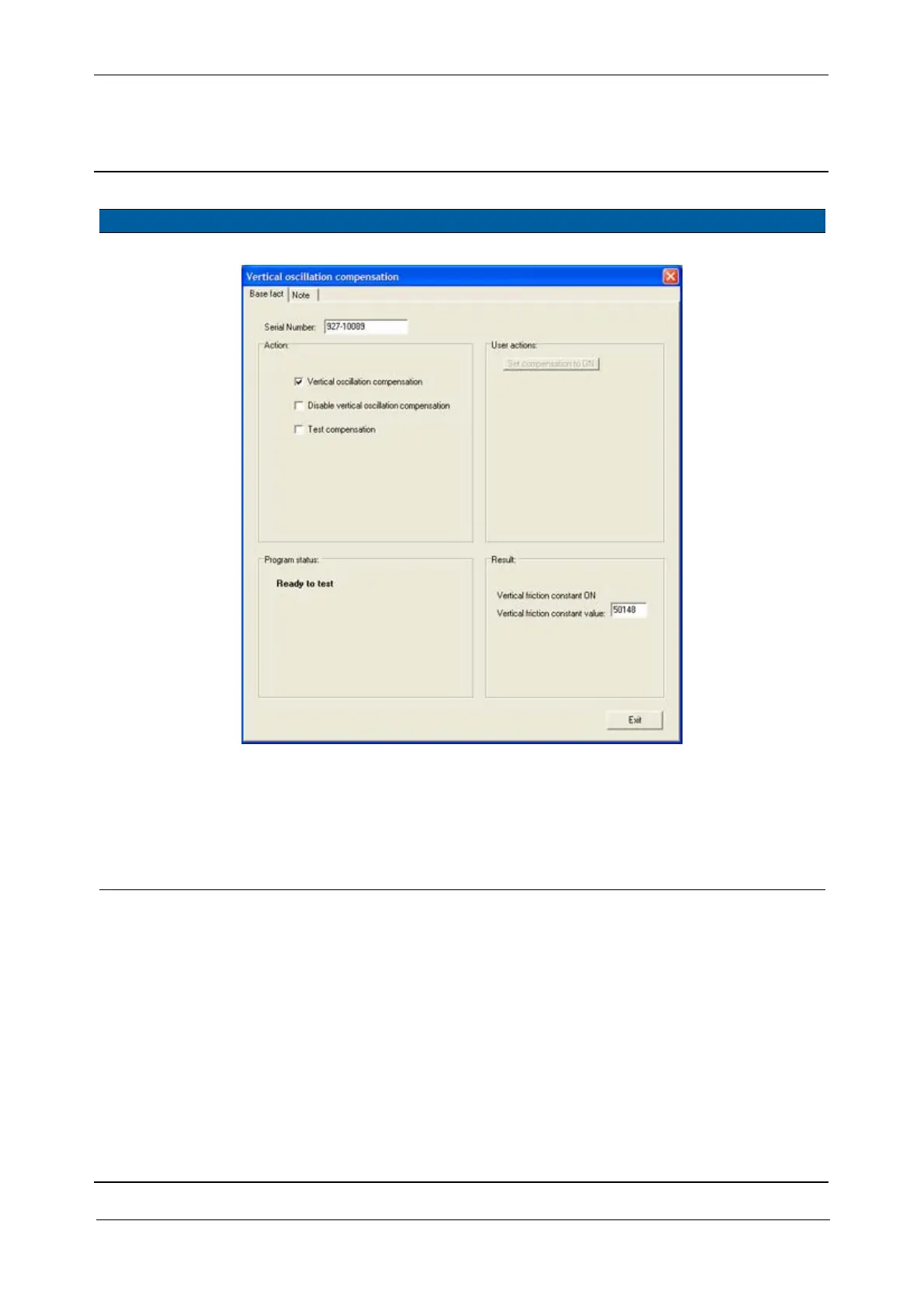

Fig. 6-18 Activate Vertical oscillation compensation
4
Optional - Disable
vertical oscillation
compensation.
A.
Select
Disable vertical
oscillation
compensation
check
box.
B.
Click
Set
compensation to OFF
button.
The status of
compensation is
displayed ON/OFF.
Item
Performance
Description
Result
Notes
361
363
