Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 39 Trimble S, VX, SPS & RTS Service Manual
F

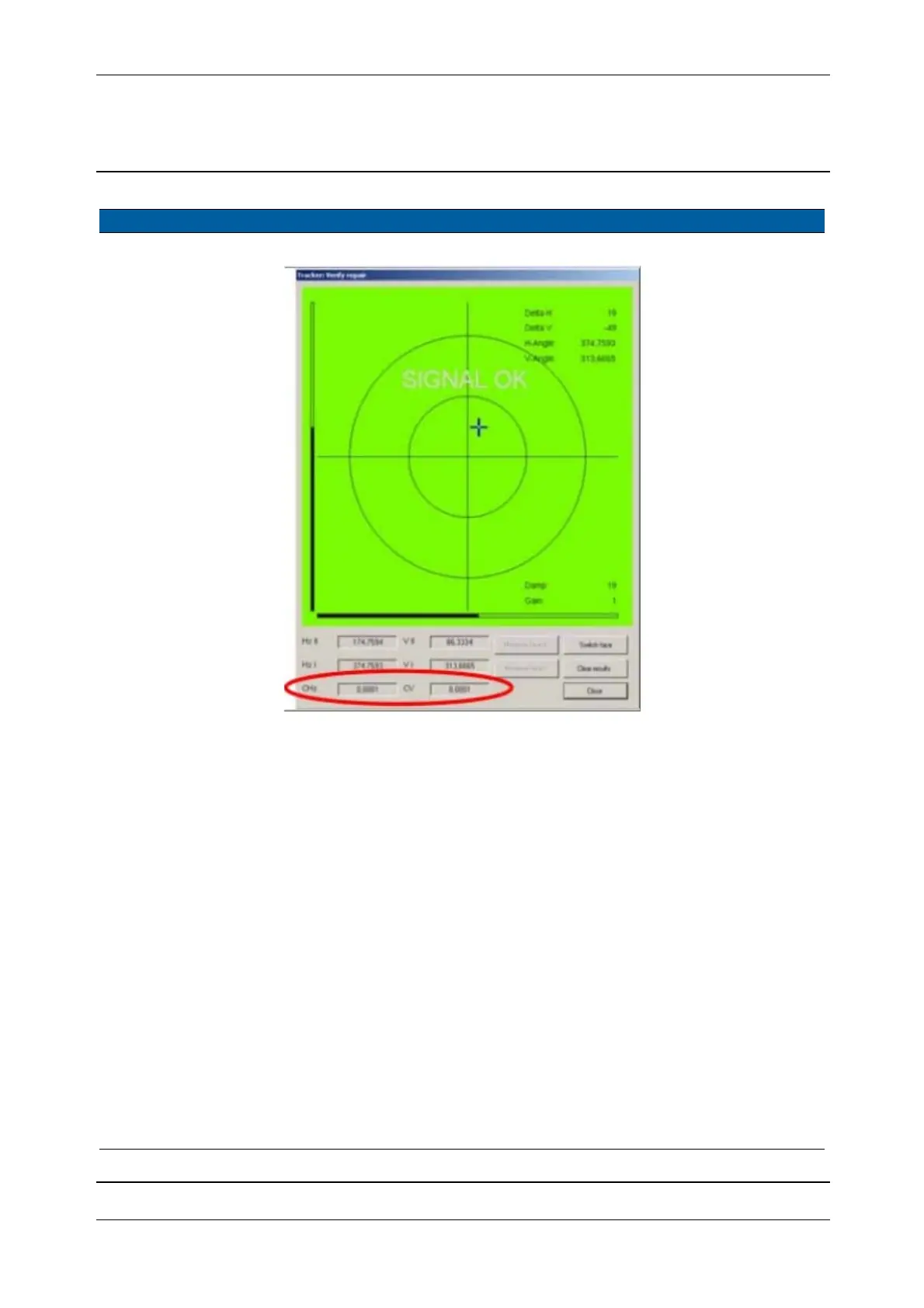

Fig. 6-28 Tracker verify repair
4 Test tracker
collimation.
A. Aim in face2 to a prism
in a distance between
40 and 100.
B. Turn servo knobs on
the instrument until the
cross is centred.
C. Click
Measure face II.
D. Click
Switch face
E. Adjust with servo
knobs on the
instrument until the
cross in the picture is
centred.
F. Click
Measure face I.
The cross represents
the reflected tracker
signal position on the
quadrant detector.
5 Decision tolerance
passed.
If tolerance passed
(“Yes”) go on with reticle
adjustment, see page 6-40.
If tolerance failed (“No”)
go on with tracker
receiver adjustment, see
page 6-42.
See Fig. 6-28 on
page 6-39 :
CHz 93cc
(30”)
CHz 93cc
(30”)
Item Performance Description Result Notes
