Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 64 P/N 57150002, Revision 5.0
F

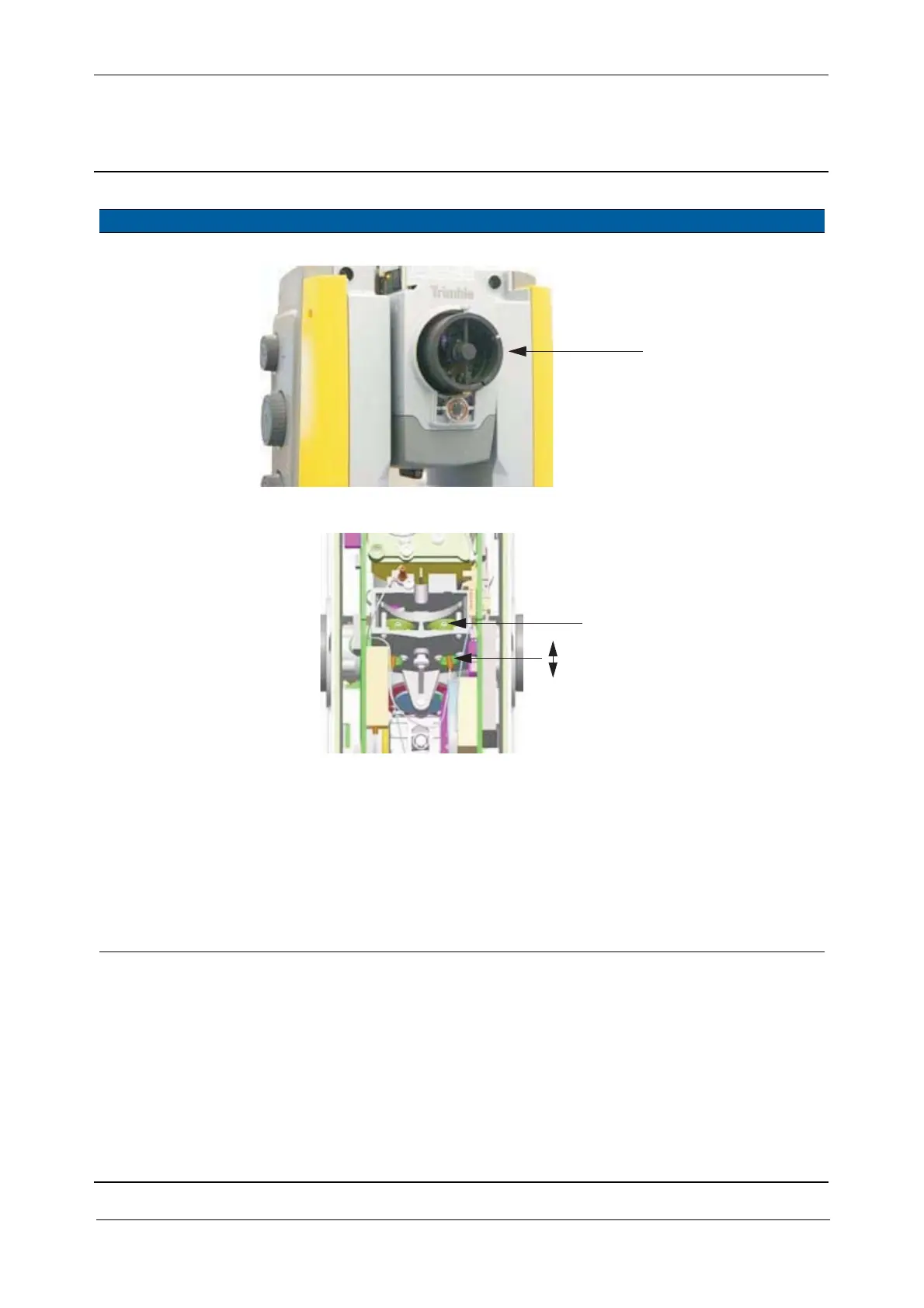

Fig. 6-59 Attachment of Illumination RX S6/5600 tool
Fig. 6-60 Focusing receiver fibre
10 Align receiver fibre. A. Turn the two position
screws counter-
clockwise, until the
fibre is unaligned.
B. Turn the two position
screws (A) clockwise
see Fig. 6-61 on page
6-65 until the fibre is
aligned, see Fig. 6-62
on page 6-65 .
Within 1
graduation on
the collimators
cross-hairs.
Item Performance Description Result Notes
A
B
C
To Next Page
