Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 67 Trimble S, VX, SPS & RTS Service Manual
F
2 Remove greywedge
assembly.
see Fig. 5-70 on page 5-
74 .
3 Start up instrument /
PASS.
See page 7-3 how to set-
up the instrument.
4 Start service software. Select
Optical fibre
adjustment
from EDM in
Maintenance & Service.

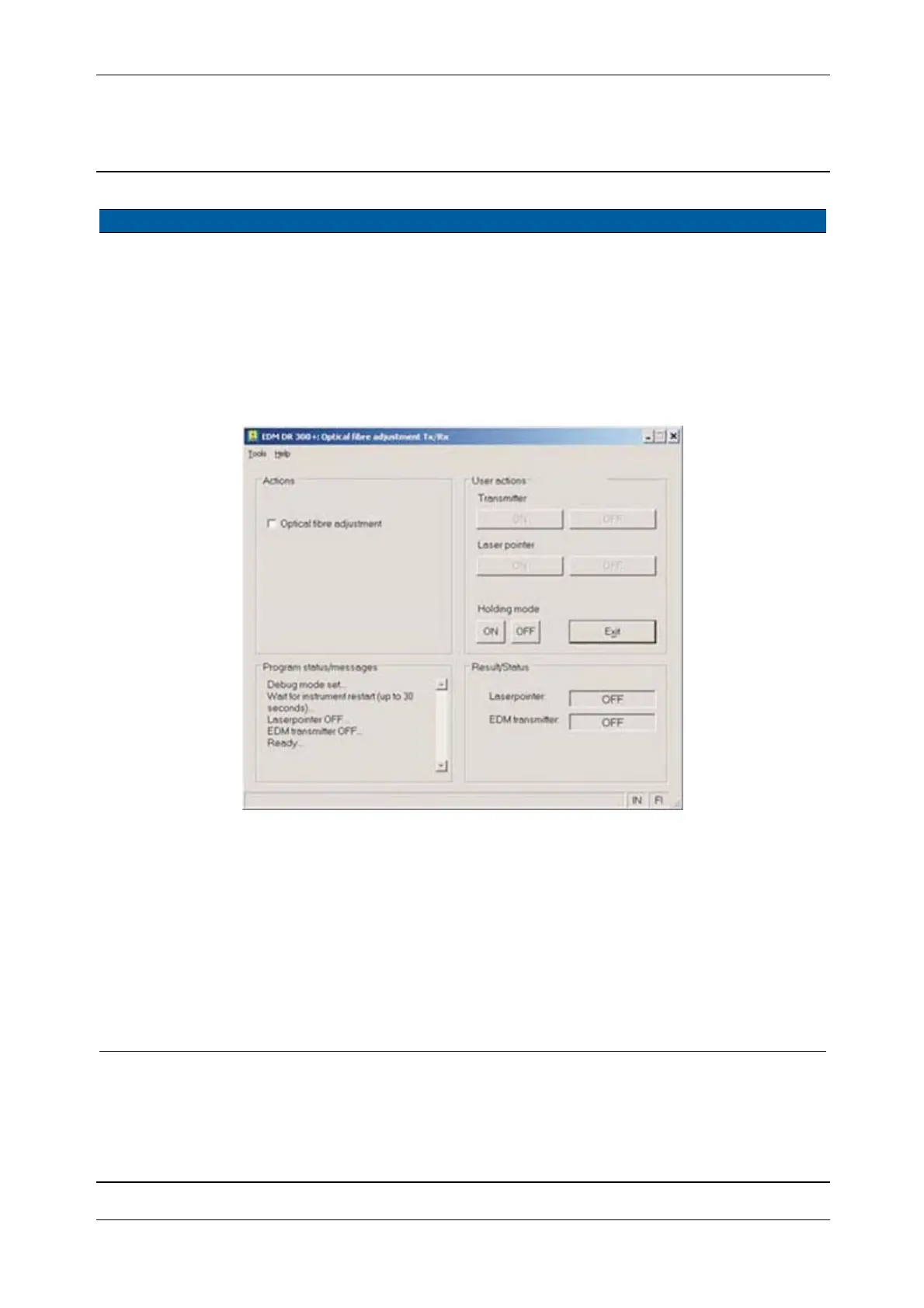

Fig. 6-66 Dialogue Optical fibre adjustment
5 Preparation of the fibre
adjustment.
A. Aim the instruments
cross-hair to the
collimator cross-hair.
B. Click Holding mode
ON.
C. Click Transmitter
ON.
D. Adjust the light
intensity by shifting
the Greyfilter, see Fig.
6-67 on page 6-68 and
Fig. 6-68 on page 6-
68.
The spot of the
Transmitter will
appear on the
monitor.
Move the Greyfilter
from the left side for
best image.
Item Performance Description Result Notes
