Chapter 6
Adjustment and verification
Trimble S, VX, SPS & RTS Service Manual6 - 68 P/N 57150002, Revision 5.0
F

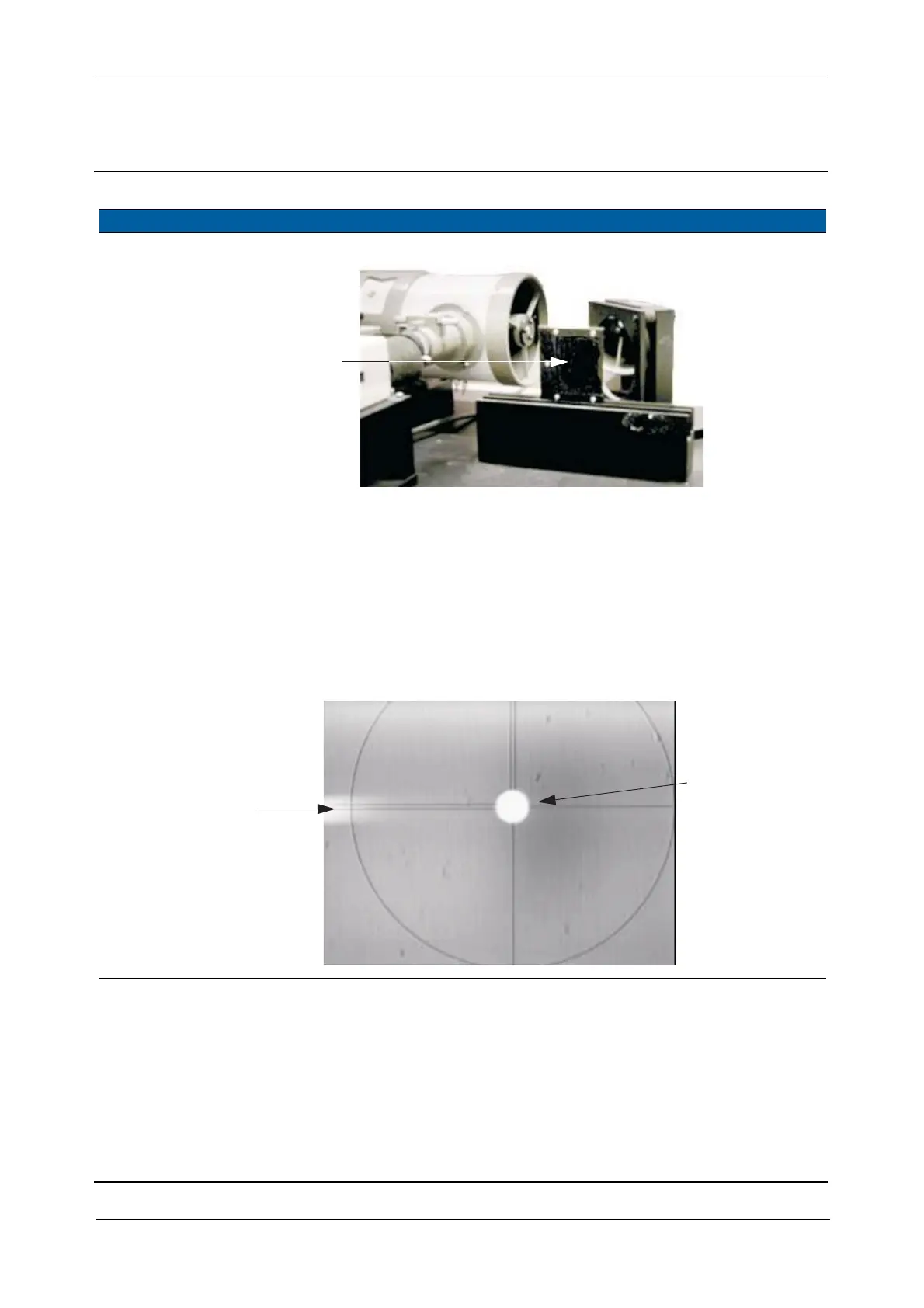

Fig. 6-67 Adjust attenuator Greyfilter TX
6 Focus transmitter
fibre.
A. Loosen the locking
screw.
B. Grip the transmitter
ferule with the
tweezers, see Fig. 6-69
on page 6-69 and
move it in and out until
the image of the fibre
is sharp.
Use tweezers with
cushioned tips.
Fig. 6-68 Transmitter Laser spot
Item Performance Description Result Notes
D
Attenuator
Greyfilter
When this halo
Transmitter fibre
appears the
image is optimized
