F
5 Baselines requirement. The minimum number of Baselines are:
For determination: two DR targets between 15 - 50 meter
three prisms between 10 - 100 meter
For validationone DR target between 2,4 - 2,6 meter
one DR target between 15 - 50 meter
one prism between 10 - 100 meter
For short rangeone DR target between 2,4 - 2,6 meter
Note – Do not use the same targets for validation and determination,
the distance must be different.

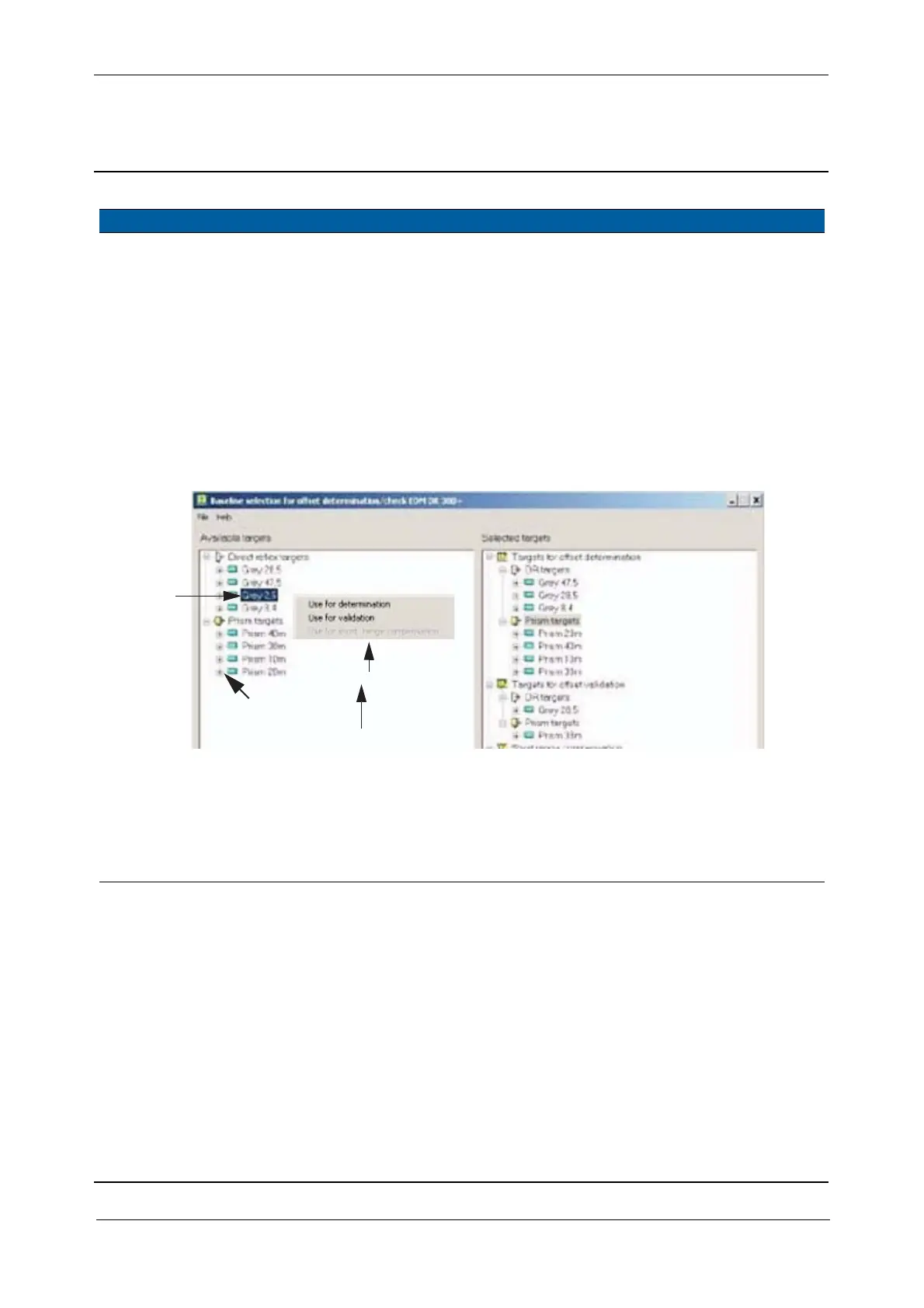

Fig. 6-93 Dialogue Baselines selection for offset determination
6 Setting of atmospheric
conditions.
A. Select
Set atmospheric
conditions
check box.
B. Click
Atmospheric
cond.
button.
C. Type in pressure and
temperature.
Before offset
determination starts it
is required to enter
pressure and
temperature.
Item Performance Description Result Notes
of the base lines
Click to see the properties
Destination
A
B
