Trimble S User Manual

Chapter 6
Adjustment and verification
P/N 57150002, Revision 5.0 6 - 83 Trimble S, VX, SPS & RTS Service Manual
F

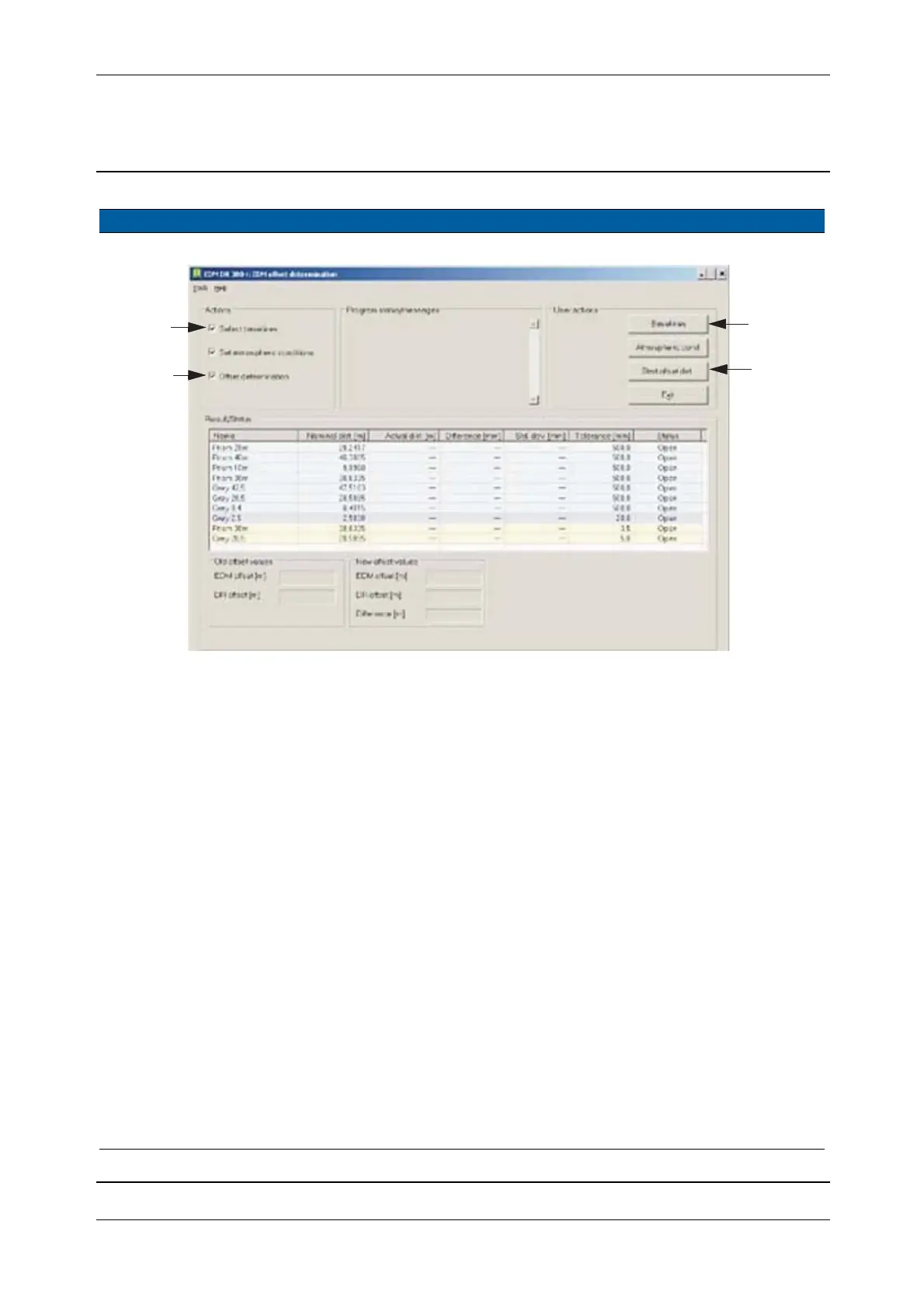

Fig. 6-92 EDM offset determination
3 Select Baselines. A. Select the
Select base
lines
check box.
B. Click
“Baselines”, the
dialogue “Baselines
selection for offset
determination” will
appear.
If base lines already
has been selected, see
Fig. 6-92 on page 6-
83 , jump to items 5.
4 Assign the Baselines. A. Click the appropriate
baselines on the left
site by right mouse
key.
B. A sub menu appears
which offers three
destinations for use of
the baselines.
C. After the assignment is
completed click
File/
Save selection and
then exit
. The dialogue
“EDM offset
determination”
appears again.
It is a precondition that the base lines
have been set in the Baseline editor.
Otherwise they will not appear on the left
site.
See PASS user manual how to set
baselines in the Baseline editor
Every single baseline from the left side
can be selected in any position on the
right side.
Baselines from the right side is used for
offset determination or control
measurement.
Attention:
If entries in the Baseline editor is
changed they are updated in the Baseline
selection.
